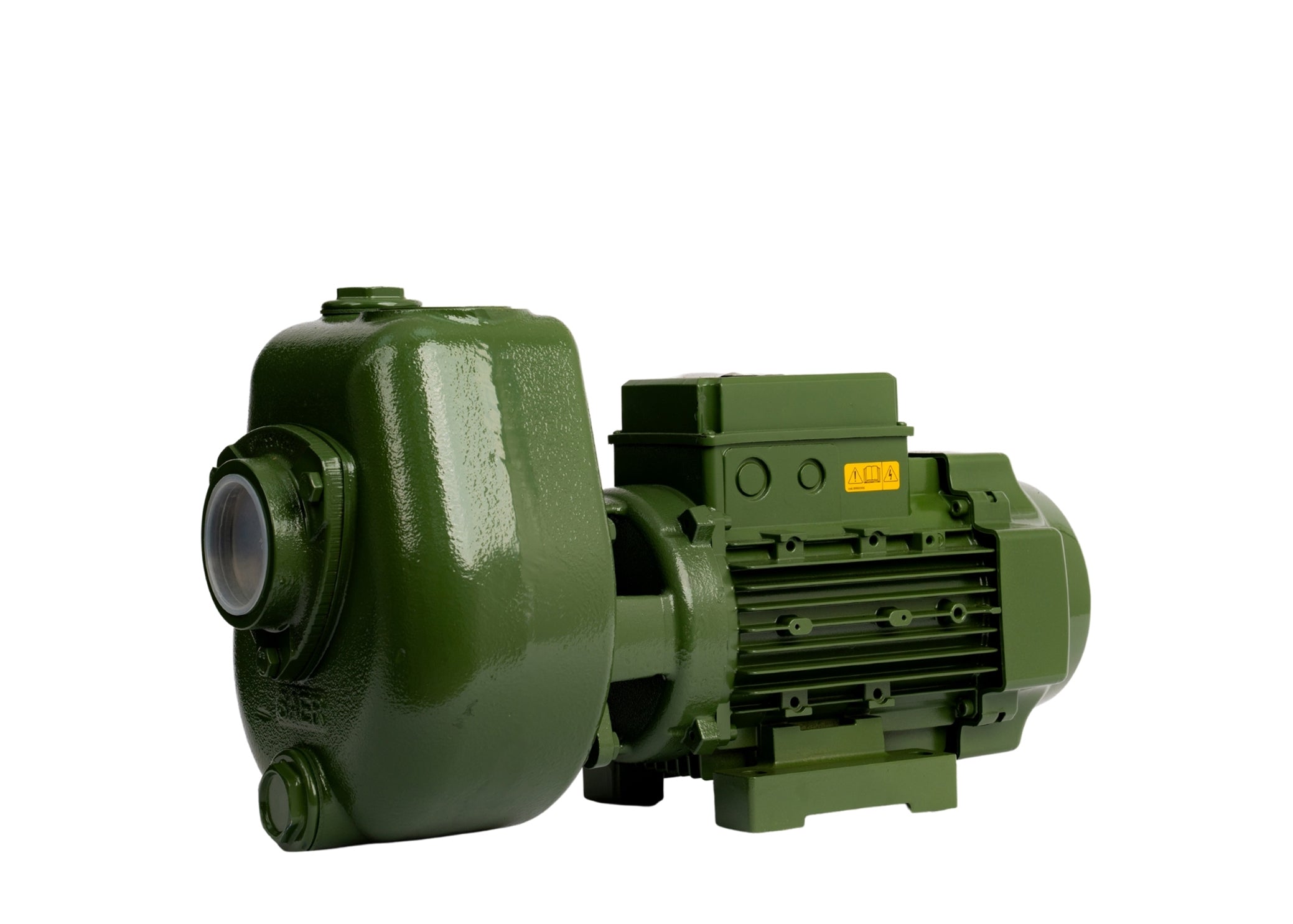

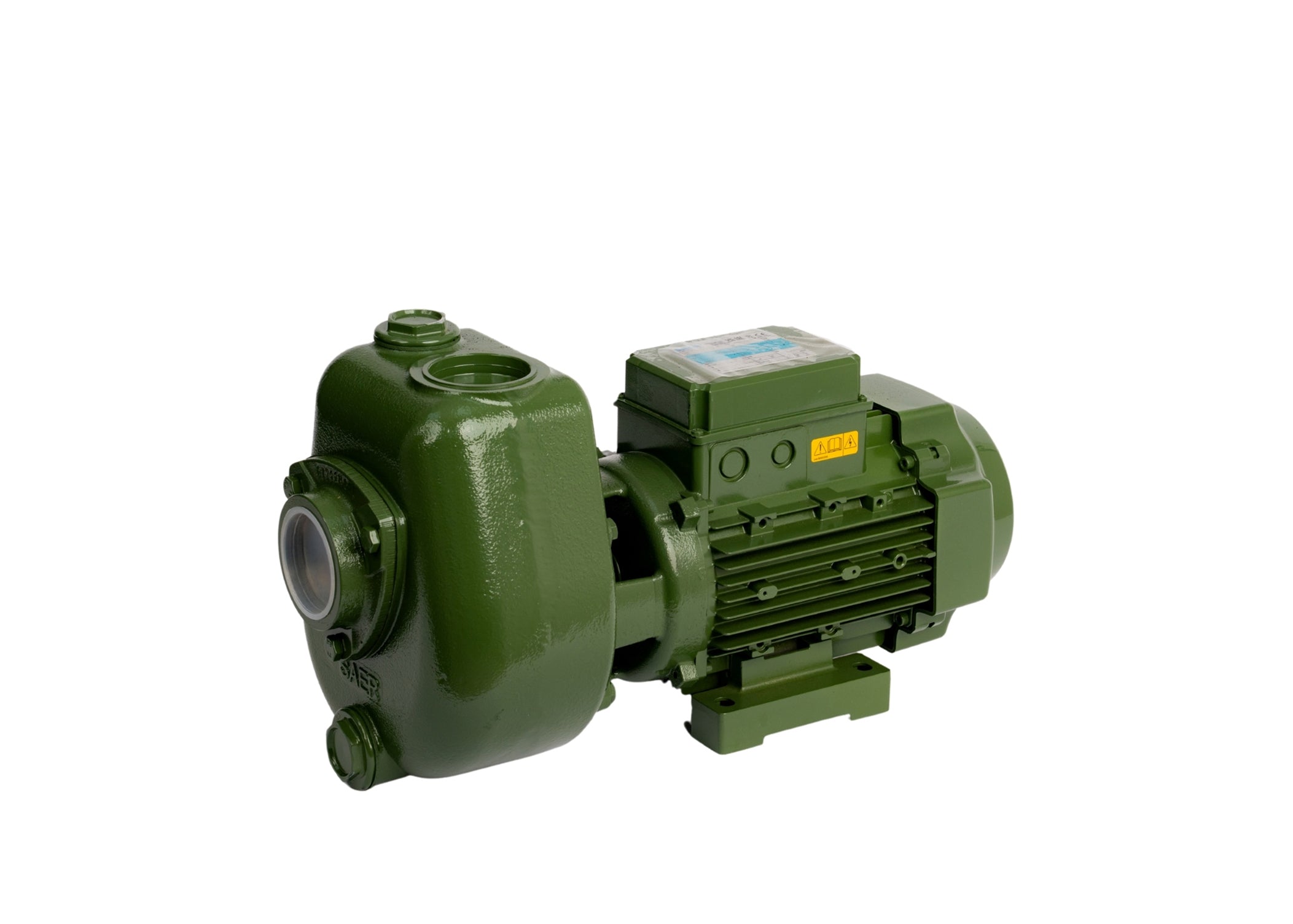

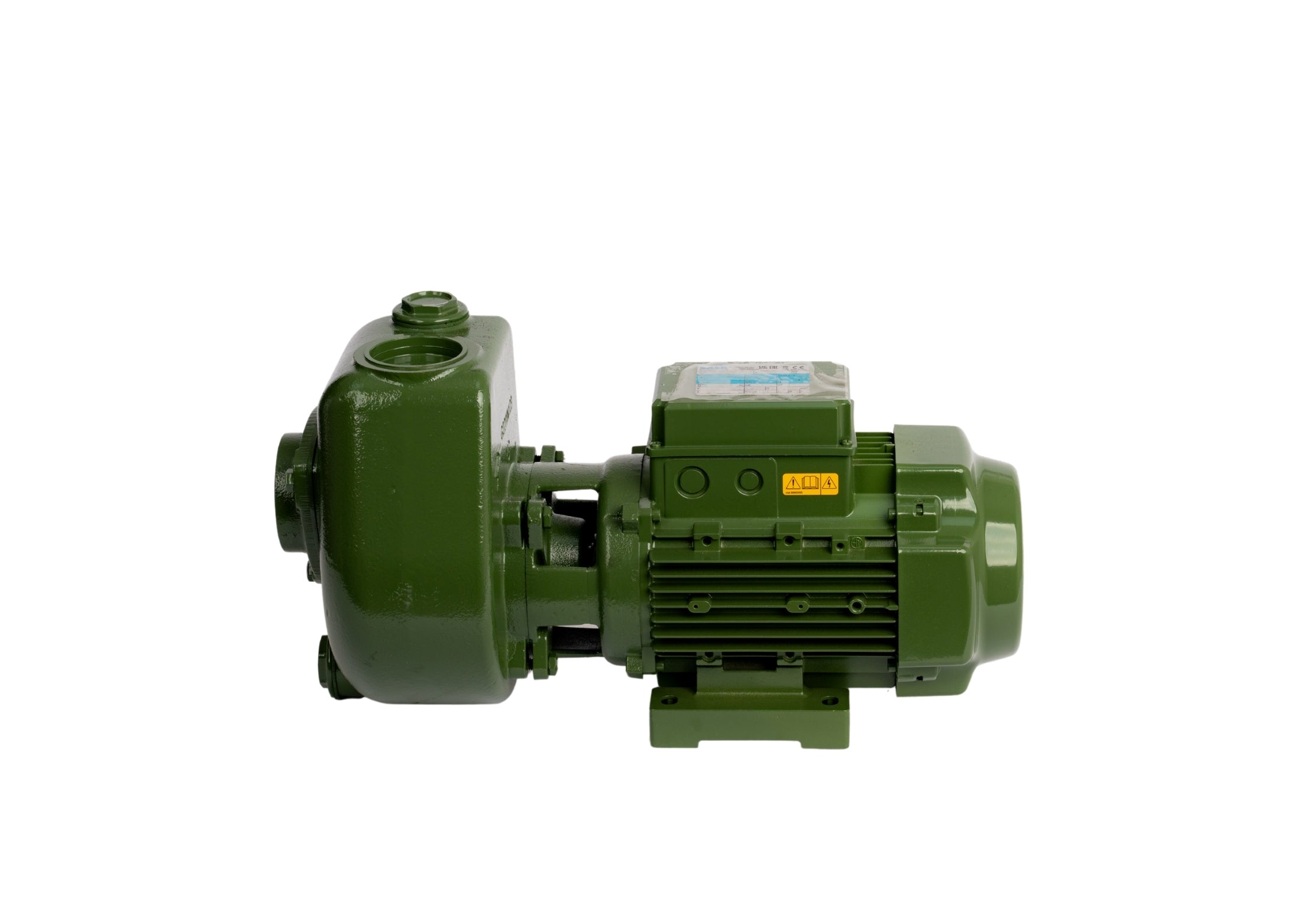

SAER AP 97 A 1.5HP 1KW PMP
SAER AP 97 A 1.5HP 1KW PMP
SAER AP 97 A 1.5HP 1KW PMP
SAER AP 97 A 1.5HP 1KW PMP

SAER AP 97 A 1.5HP 1KW PMP

Frais d'envoi calculés à la caisse

Product  : AP/97-A
Colour Name  : Green
Power Source  : Electric Pump
Power Capacity  : 1.5HP 1.1KW
Number of pieces  : 1BOX
Product Overview
Highlights
  • Pump Model:AP 97 A
  • Rated Motor Power:1 kW (IE3 Efficiency Class)
  • Maximum Flow:30 m³/h
  • Operating Flow:17.2 m³/h
  • Maximum Head:15.9 m
  • Operating Head:11 m
  • Speed:2850 rpm (at 50 Hz)
  • Shaft Power (P2):0.855 kW (max)
  • Efficiency:57.2% (peak)
  • Connection Size:G2\
  • Rotation:Clockwise from drive end
  • Fluid Compatibility:Water at 20°C
  • Operating Range:6-30 m³/h flow capacity
  • Head Range:Up to 15.9 meters
  • Power Range:0.61-0.855 kW shaft power
  • Efficiency Curve:Maintains high efficiency across broad operating range
SAER AP 97 A 1.5HP 1KW PMP
Product Description

The AP 97 A is a high-efficiency centrifugal pump designed for optimal water transfer applications. With a peak efficiency of 57.2% and a compact design, this pump delivers reliable performance across a wide operating range. Featuring a 1kW IE3 premium efficiency motor and versatile multi-frequency capability, the AP 97 A is engineered for energy-efficient operation in commercial water systems, HVAC applications, and general industrial water transfer where both performance and energy savings are prioritized.

Key Features

  • Premium IE3 Efficiency: High-efficiency motor design reduces energy consumption and operating costs

  • Optimized Hydraulic Performance: 57.2% peak efficiency across the operating range for maximum energy savings

  • Multi-Frequency Operation: Compatible with 35-50 Hz operation for flexible application across different regions and systems

  • Compact Design: Space-efficient construction suitable for installations with limited space

  • Wide Operating Range: Flow capacity from 6-30 m³/h with head up to 15.9 meters

  • Standard Pipe Connections: G2" connections for easy integration into existing piping systems

  • Reliable Performance: Consistent operation across varying flow conditions with stable power consumption

  • Low NPSH Requirements: Suitable for systems with limited suction head conditions

This high-efficiency pump is ideal for building services, water supply systems, pressure boosting, and general water transfer applications where energy efficiency and reliable performance are essential requirements.
