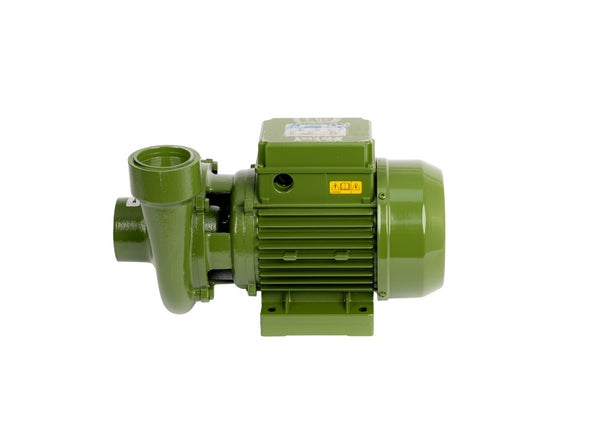

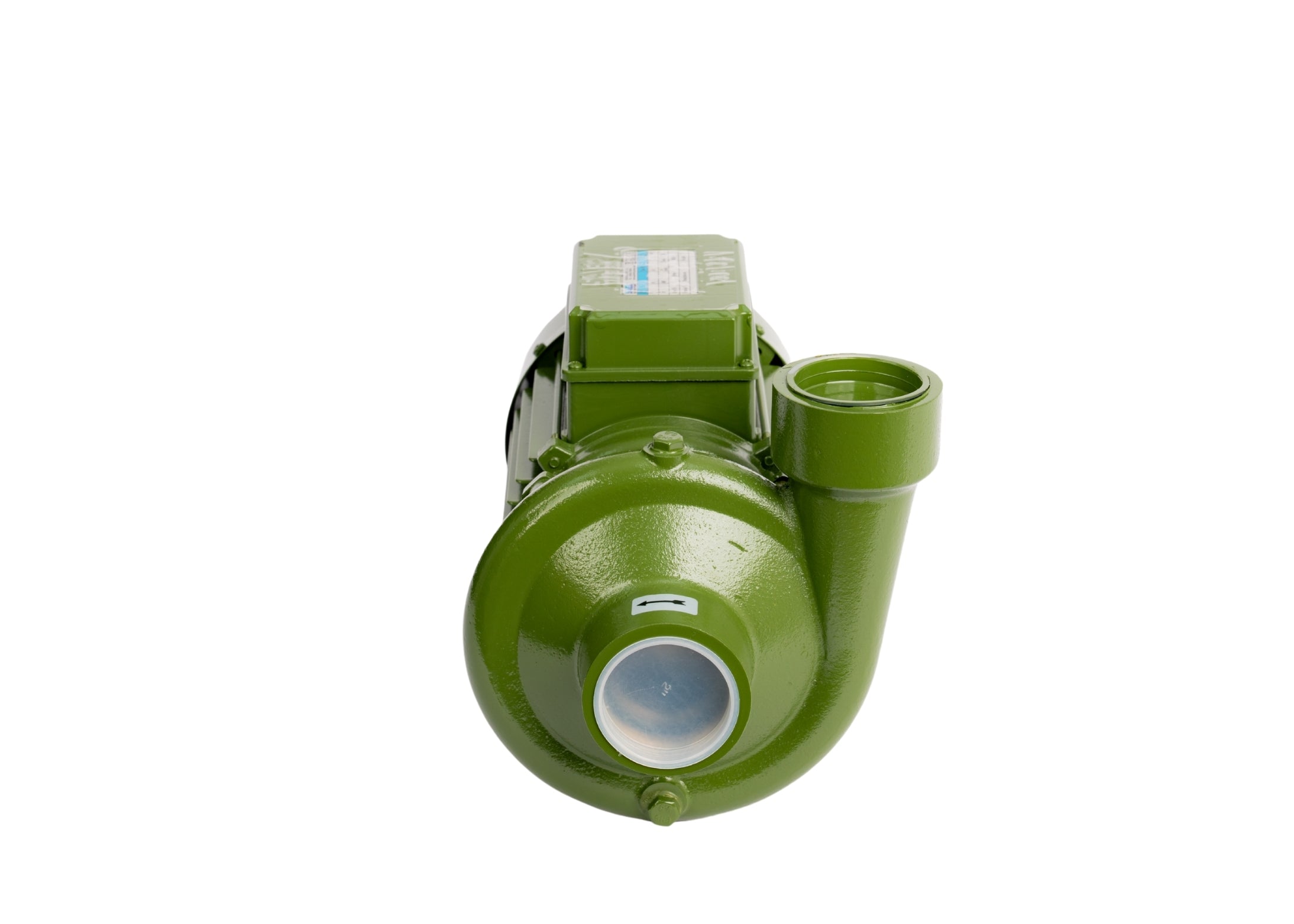

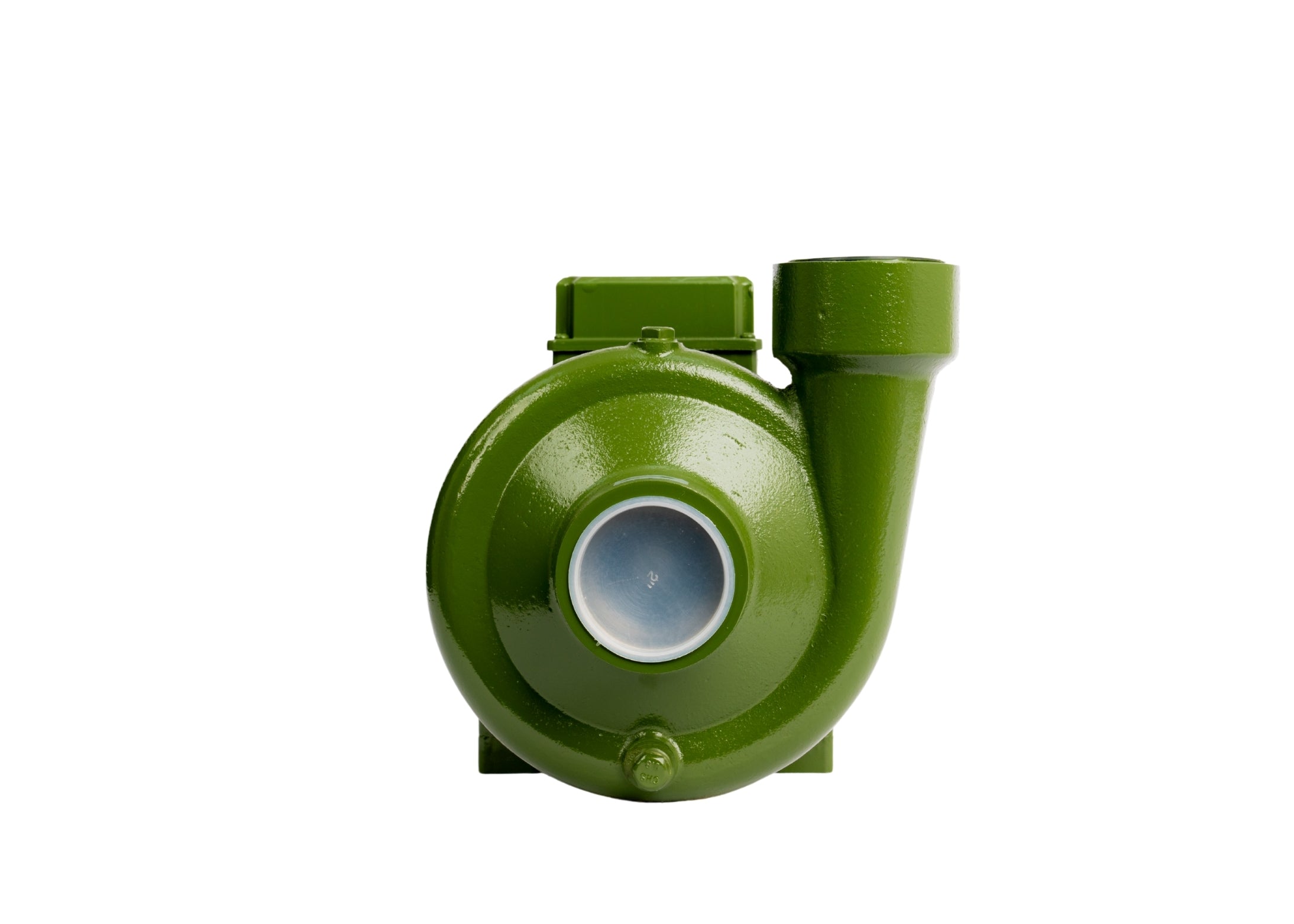

Saer BP5-G-230V-2HP-1PH-50HZ
Configurer
- Pump Model:BP 5
- Design:Single-stage centrifugal pump
- Speed:2850 rpm
- Nominal Flow:0 l/s (adjustable)
- Max Flow:11.2 l/s
- Max Head:23.8 m
- Min Head:6.03 m
- Head at Zero Flow:23.8 m
- Max Working Pressure:33.9 psi
- Max Absorbed Power:3.2449 hp
- Motor Frame Size:90 S
- Motor Manufacturer:SAER
- Motor Type:90 S 2 - 1.5 I~
- Rated Power:2.0115 hp
- Efficiency:44%
- Voltage:230 V
- Current:11.5 A
- Frequency:50 Hz
- Speed (Motor):2950 rpm
- Protection Class:IP44
- Insulation Class:F
The BP 5 is a single-stage electric pump designed for efficient and reliable fluid transfer, particularly for clean water applications. It is built with durability and performance in mind, incorporating robust materials and a high-efficiency motor. Suitable for industrial, commercial, or residential use, this pump offers a balance of compact design and strong operational capabilities.
Key Features
-
Robust Construction:
-
Shaft: Stainless steel (ASI 420 / 1.4028)
-
Pump Body & Support: Cast iron (EN-GJL-200)
-
Mechanical Seal: BXPG (Ceramic/NBR)
-
O-Ring: NBR Rubber
-
-
High-Efficiency Motor:
-
SAER motor with high torque and reliable performance under continuous operation.
-
Designed for 230V, 50Hz power supply, suitable for European standards.
-
-
Compact Design:
-
Dimensions optimized for space-constrained installations.
-
Key dimensions include:
-
a = 70 mm
-
b = 82 mm
-
f = 294 mm
-
h1 = 96 mm, h2 = 122 mm
-
-
-
Versatile Performance:
-
Suitable for pure water and similar fluids.
-
Operating temperature: 20°C
-
Handles a wide range of flow rates (0–11.2 l/s) and head (6.03–23.8 m).
-
-
Reliable Sealing & Protection:
-
Mechanical seal ensures leak-free operation.
-
IP44 protection against dust and water splashes.
-
Class F insulation for enhanced thermal endurance.
-
Applications
-
Water supply systems
-
Irrigation
-
Industrial cooling systems
-
Building services and HVAC
-
General purpose water transfer
