Shipping calculated at checkout

Product  : KF/0
Colour Name  : Green
Power Source  : Electricity
Power Capacity  : 0.5HP 230V
Number of pieces  : 1BOX
Origin  : Made in Italy
Product Overview
Highlights
  • Model:KF 0
  • Pump Type:Single-stage Peripheral Impeller
  • Design Fluid:Water
  • Operating Temperature:20°C
  • Fluid Density:998.3 kg/m³
  • Kinematic Viscosity:1.005 mm²/s
  • Nominal Flow:10.6 US gpm
  • Nominal Head:29.6 m
  • Speed:2850–2950 rpm
  • Max Working Pressure:290 kPa
  • NPSH (3%):2.63 m
  • Shaft Power:0.37 kW
  • Efficiency:Up to 29.3%
  • Shaft:AISI 420 (1.4028) Stainless Steel
  • Impeller:Brass
  • Pump Body:Cast Iron EN-GJL-200
  • Support:Cast Iron EN-GJL-200
  • O-ring:NBR Rubber
  • Mechanical Seal:BXPG (Graphite/Ceramic/NBR)
  • Rated Power:0.37 kW
  • Voltage:230V AC, 1 Phase
  • Current:2.3 A
  • Frequency:50 Hz
  • Degree of Protection:IP 44
  • Insulation Class:F
  • Frame Size:71
  • Service Factor (SF):1.15
KF0 V230 0.5HP 1PH 50HZ +TE
Product Description

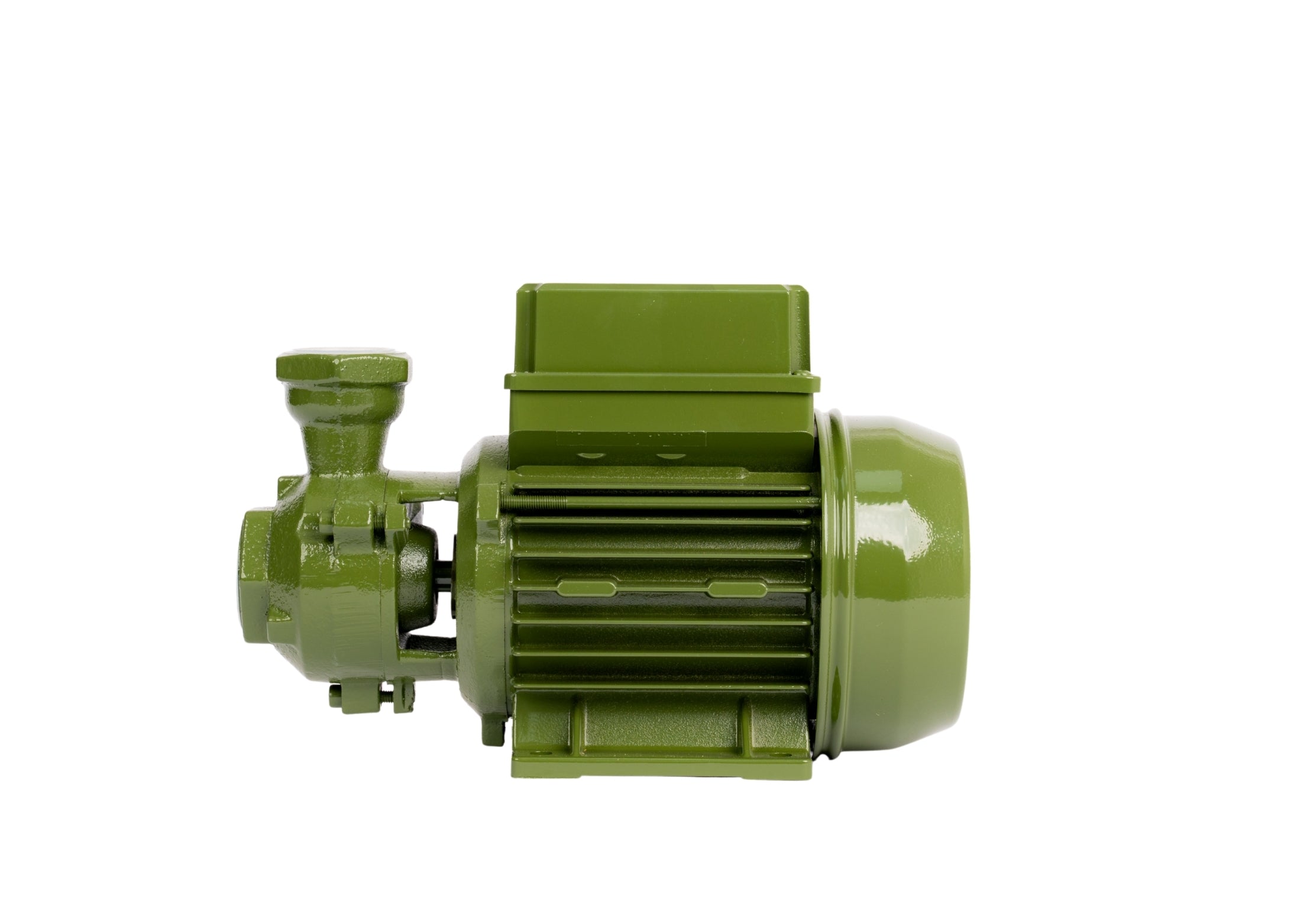

The SAER KF 0 is a compact, single-stage peripheral impeller pump designed for efficient and reliable fluid transfer. Engineered with durable materials and a robust motor, it is suitable for handling water and other compatible fluids in various residential, commercial, and light industrial applications.

Key Features

  • Peripheral Impeller Technology: Delivers stable performance and efficient operation at low flow rates.

  • Durable Material Construction: Key components made from corrosion-resistant stainless steel, brass, and cast iron.

  • Reliable Sealing System: Features a BXPG mechanical seal (Graphite/Ceramic/NBR) for leak-free operation.

  • Compact and Lightweight Design: Easy to install, integrate, and maintain.

  • Single-Phase Motor: Compatible with standard 230V power supply, widely applicable.

  • Compliance with International Standards: Manufactured in accordance with UNI EN ISO 9906:2012 grade 3B.

Typical Applications

  • Domestic and residential water supply

  • Low-flow pressure boosting

  • Light industrial liquid transfer

  • Garden and irrigation systems

  • Recirculation and cooling systems

Standards & Certifications

  • Performance Standard: UNI EN ISO 9906:2012 Grade 3B

  • Insulation Class: F

  • Enclosure Protection: IP 44

Performance Characteristics

Flow (US gpm) Head (m) Shaft Power (kW) Efficiency (%)
0 39.6 0.16 0
4 38.0 0.20 ~20
8 34.0 0.24 ~29
