Saer CMP79-N-230V 1HP 1PH 50HZ+TE
Choose options
- Model:CMP 79
- Pump Type:Single-stage, Single Vane Impeller
- Design Fluid:Water (compatible with other fluids)
- Operating Temperature:Standard ambient conditions
- Speed:2850-2950 rpm
- Maximum Flow:6 m³/h
- Head Range:20.1-34.1 m
- Head at Zero Flow:34.1 m
- Max Working Pressure:48.4 psi
- Maximum Absorbed Power:0.85714 hp (0.64 kW)
- Shaft:Stainless Steel AISI 420 (1.4028)
- Impeller:Thermoplastic Resin
- Pump Body:Cast Iron EN-GJL-200
- Support:Aluminum
- O-ring:NBR Rubber
- Mechanical Seal:BXPG (Graphite/Ceramic/NBR)
- Rated Power:1.0058 hp (0.75 kW)
- Voltage:230V AC
- Frequency:50 Hz
- Degree of Protection:IP55
- Insulation Class:F
- Frame Size:80
- Flow Range:0-6 m³/h
- Head Range:20.1-34.1 m
- Motor Protection:IP55 (Dust and water jet protected)
- Insulation Class:F (Suitable for higher temperature operation)
- Manufacturing Standard:Industry standard pump manufacturing practices

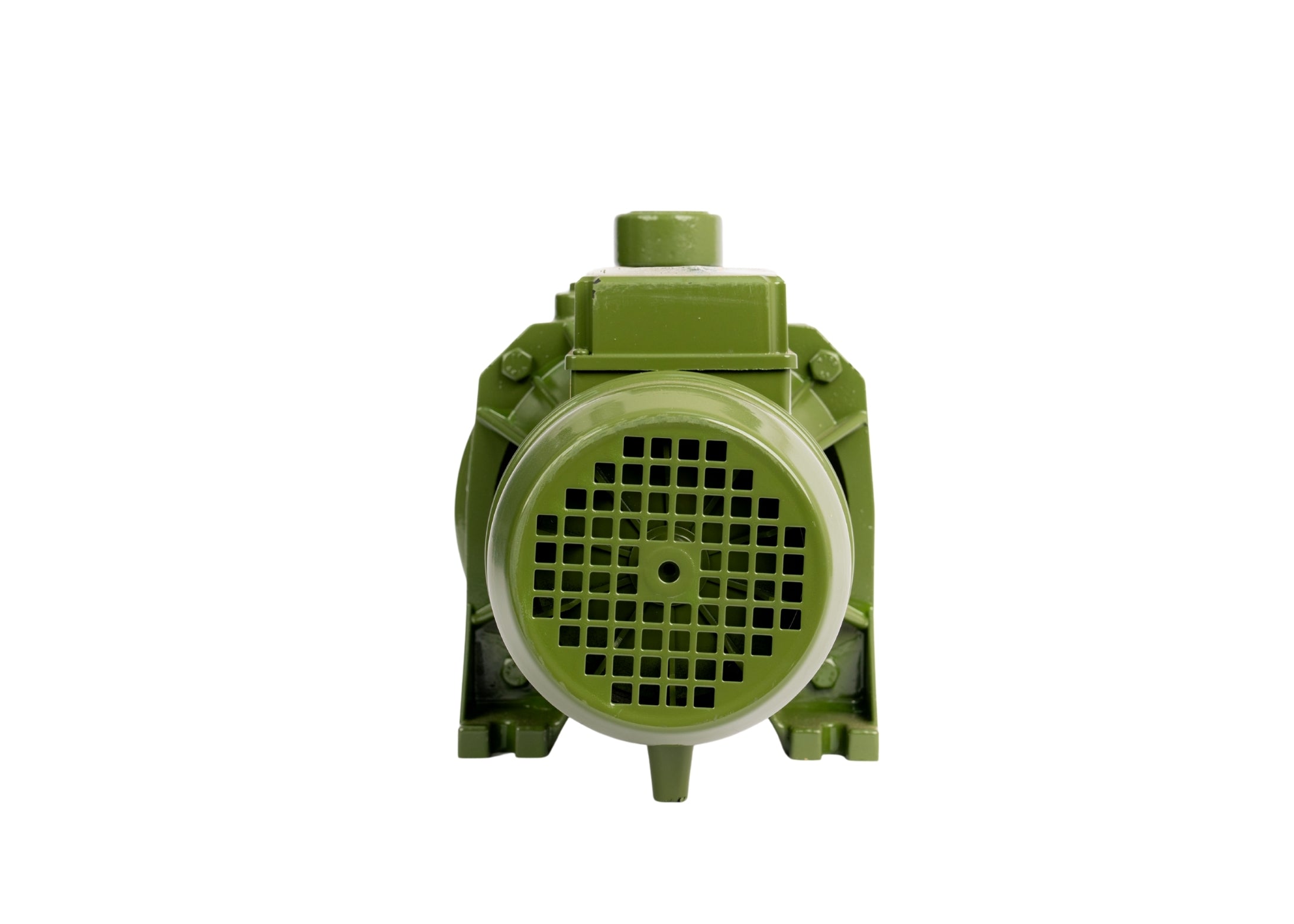

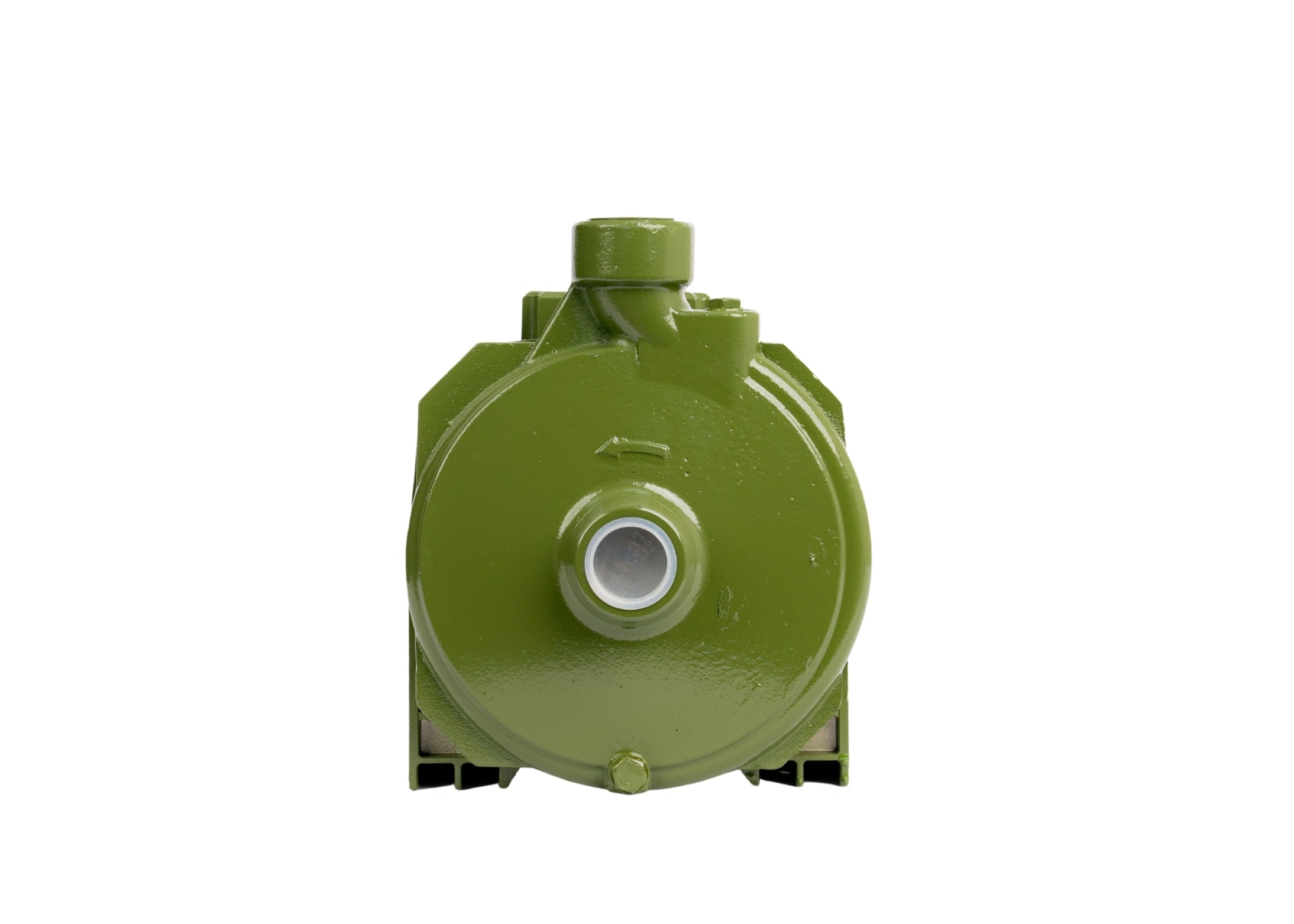

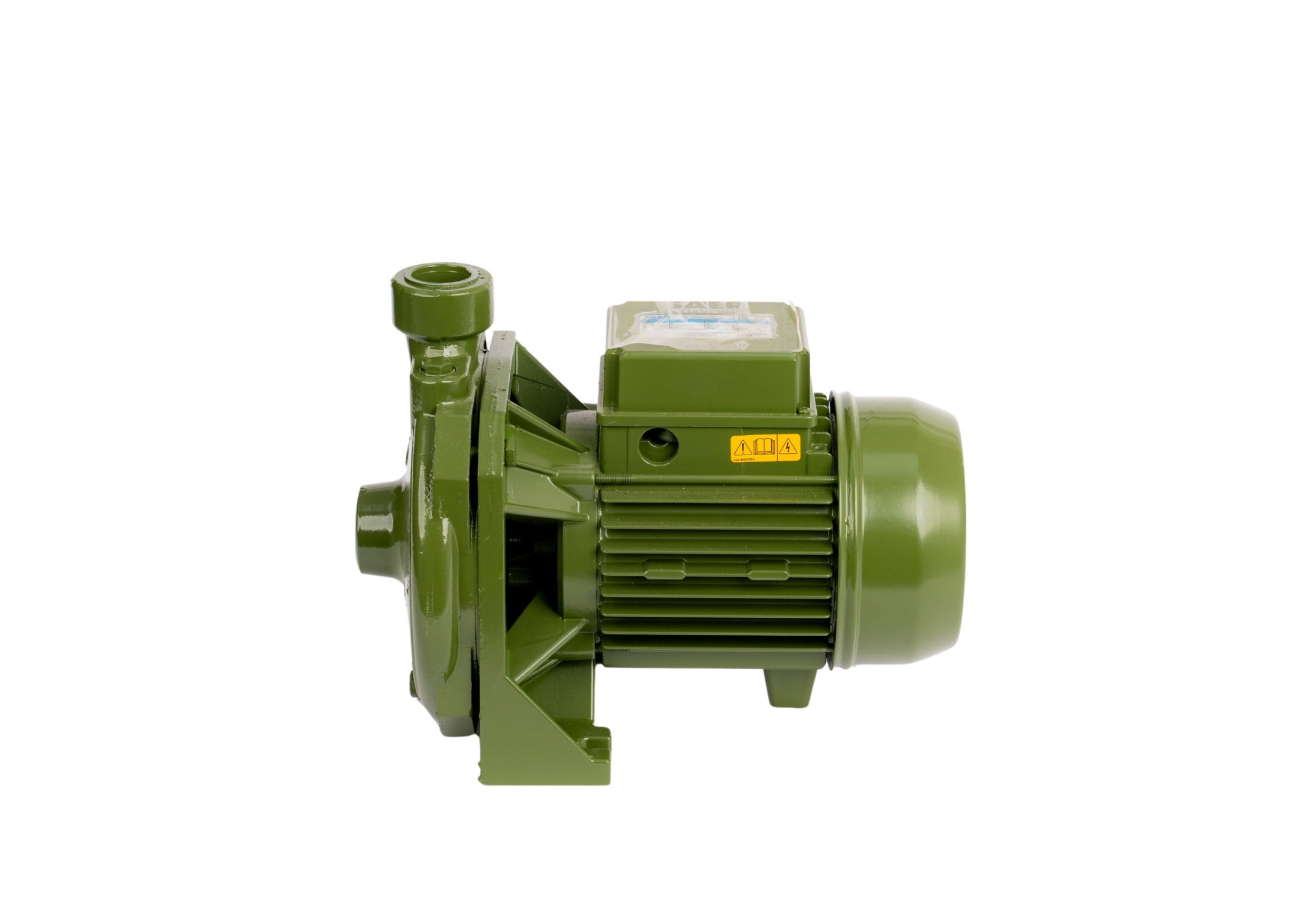

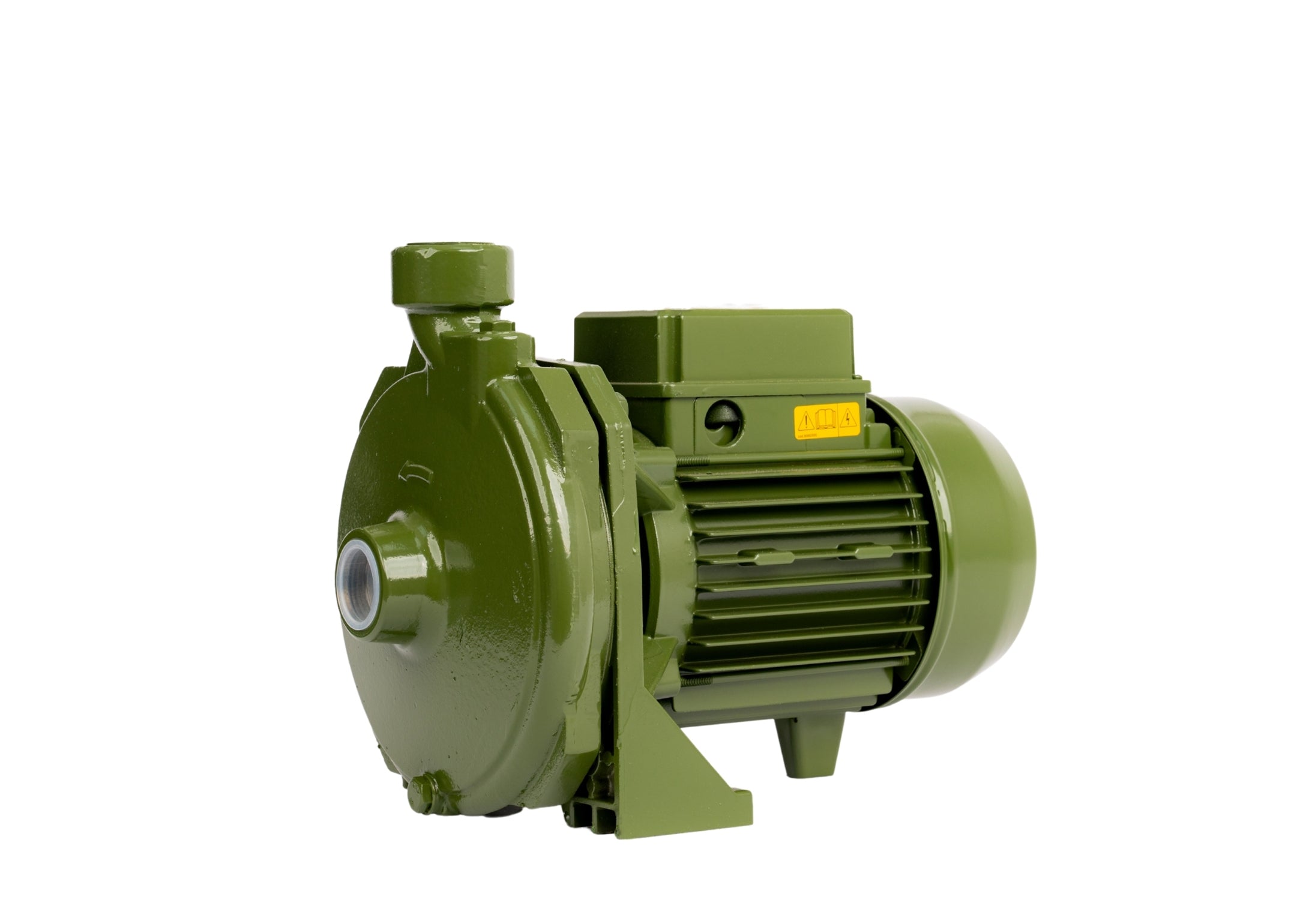

The SAER CMP 79 is a durable and efficient single-stage pump featuring a single vane impeller design. Engineered for handling various fluids with potential solid content, this pump combines corrosion-resistant materials with reliable performance. With its robust construction and IP55 protection, it's suitable for demanding applications in agricultural, industrial, and fluid transfer settings.
Typical Applications
-
Agricultural water transfer
-
Industrial fluid handling
-
Wastewater applications with small solids
-
Irrigation systems
-
General purpose liquid transfer
Standards & Certifications
-
Motor Protection: IP55 (Dust and water jet protected)
-
Insulation Class: F (Suitable for higher temperature operation)
-
Manufacturing Standard: Industry standard pump manufacturing practices
Note
Some performance parameters in the original datasheet appear incomplete. For specific application requirements, consult with SAER technical support to verify pump suitability for your particular fluid handling needs.
