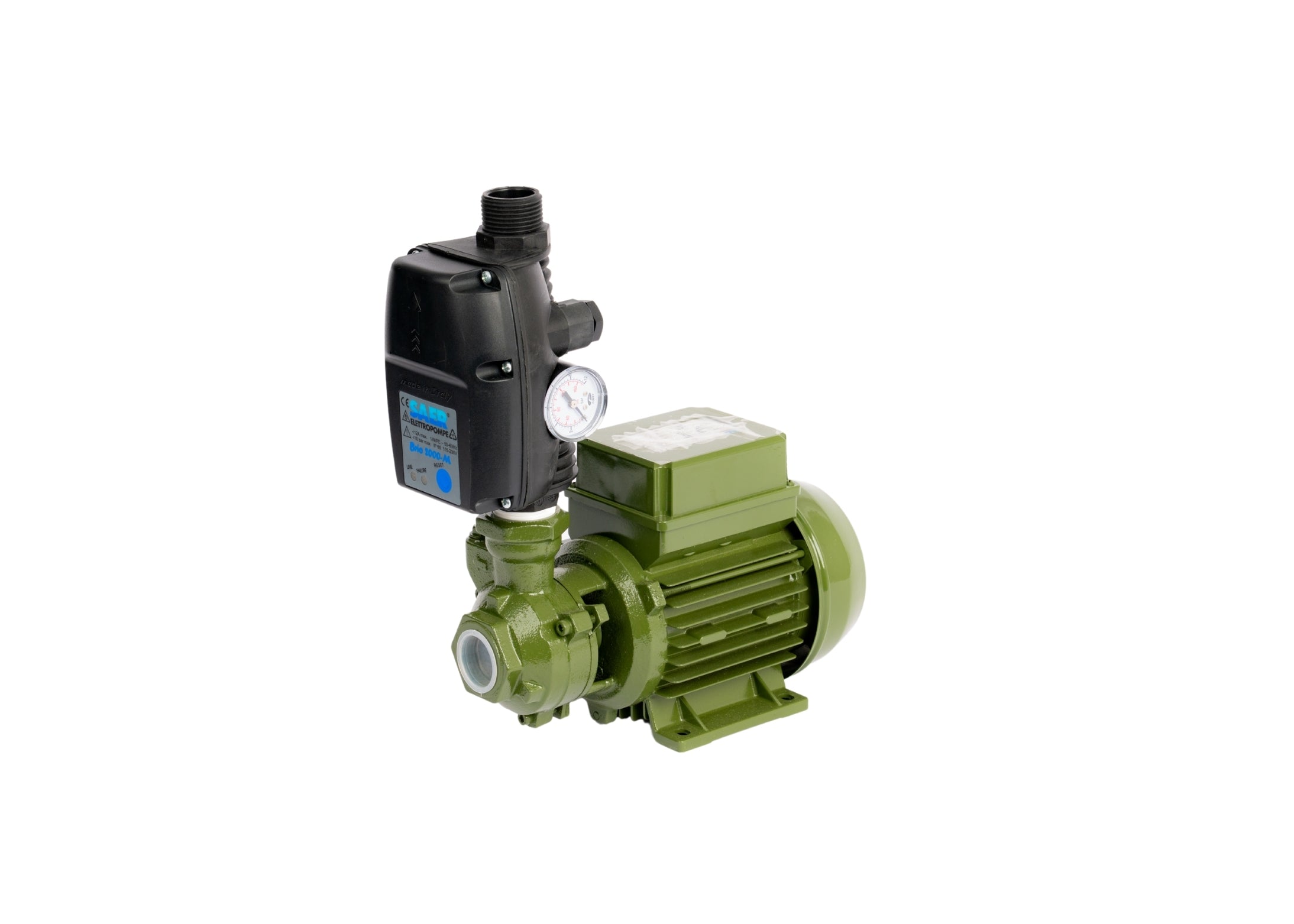

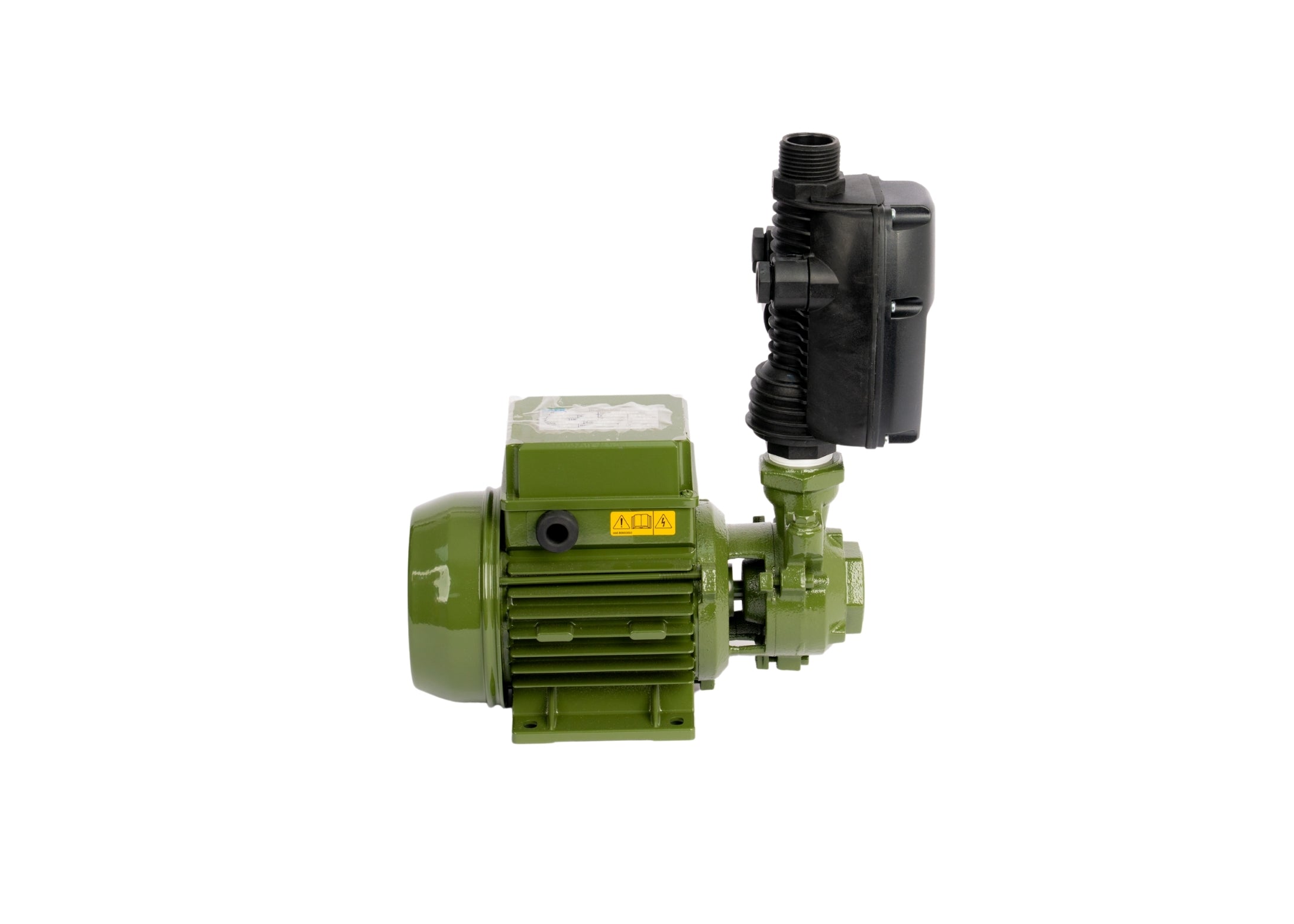

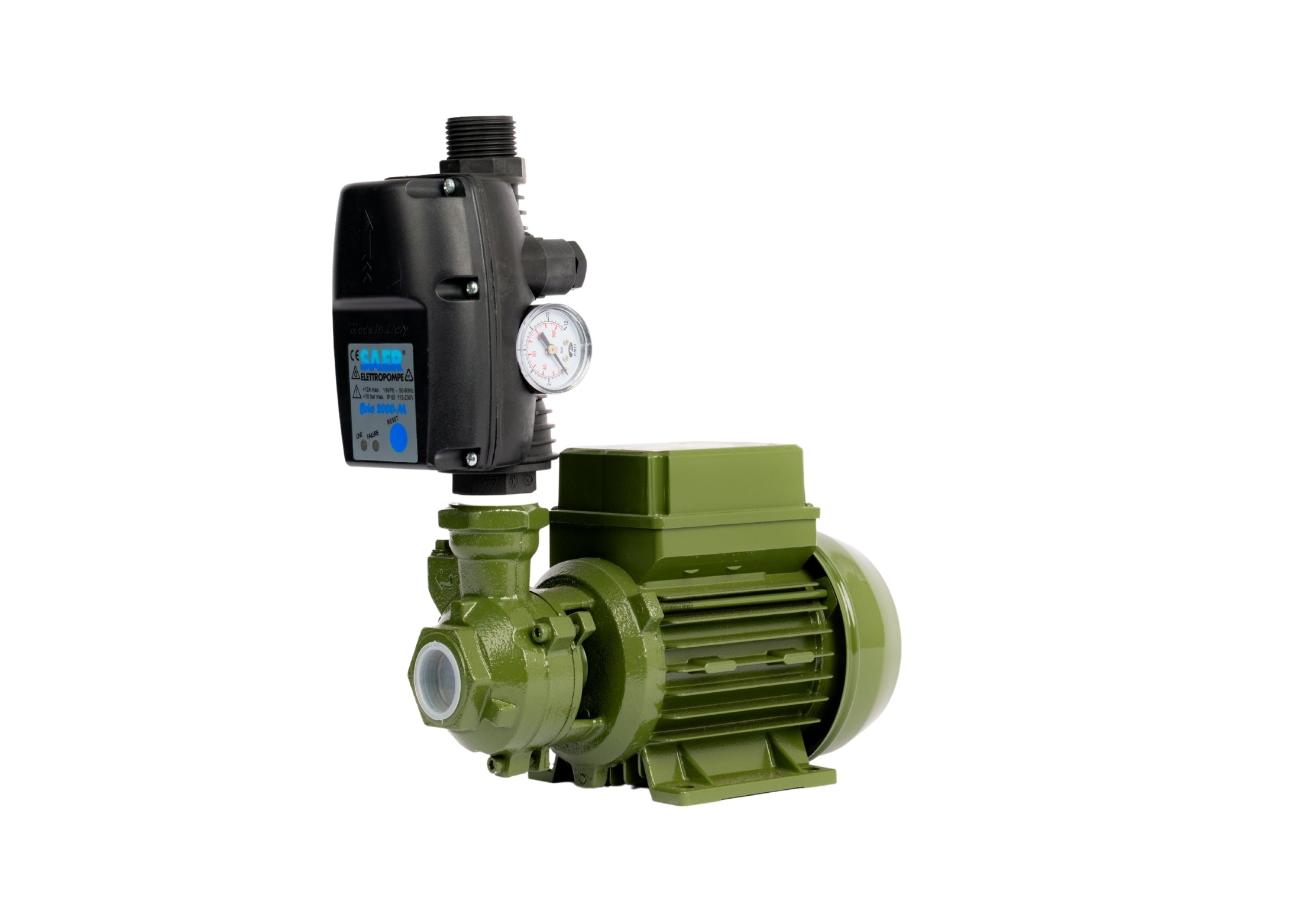

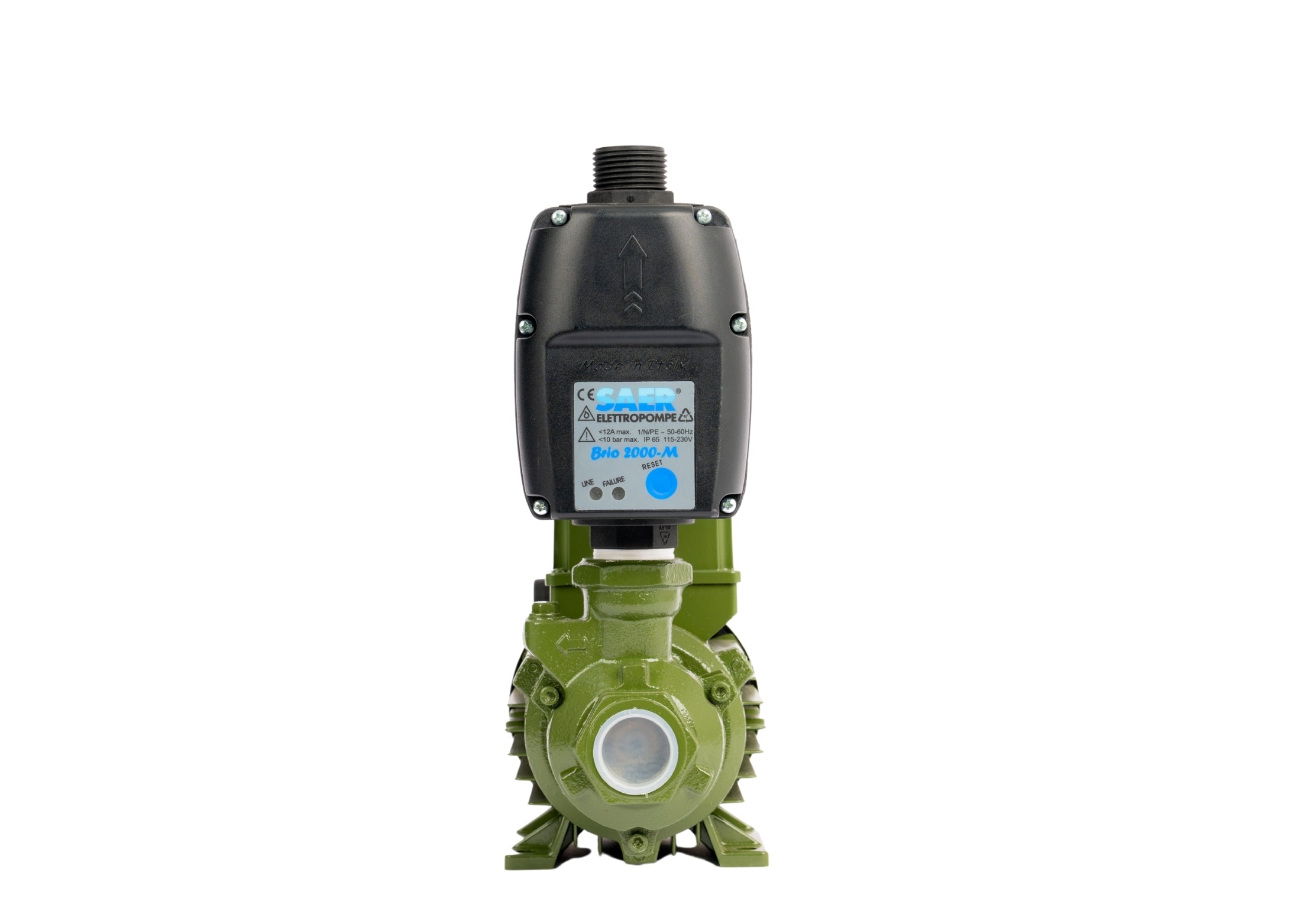

SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT
SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT
SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT
SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT

SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT

Shipping calculated at checkout

Product  : KF/0 WITH CONTROLLER KIT
Colour Name  : Green
Power Source  : Electricity
Power Capacity  : 0.5HP 230V
Number of pieces  : 1BOX
Origin  : Made in Italy
Product Overview
Highlights
  • Model:KF 0
  • Pump Type:Single-stage Peripheral Impeller
  • Fluid:Water (default, others compatible)
  • Operating Temperature:20°C (standard)
  • Density of Fluid:998.3 kg/m³
  • Kinematic Viscosity:1.005 mm²/s
  • Nominal Flow:10.6 US gpm
  • Nominal Head:29.6 m
  • Speed:2850–2950 rpm
  • Max Working Pressure:290 kPa
  • NPSH (3%):2.63 m
  • Shaft Power:0.37 kW
  • Efficiency:Up to 29.3%
  • Shaft:AISI 420 (1.4028) Stainless Steel
  • Impeller:Brass
  • Pump Body:Cast Iron EN-GJL-200
  • Support:Cast Iron EN-GJL-200
  • O-ring:NBR Rubber
  • Mechanical Seal:BXPG (Graphite/Ceramic/NBR)
  • Rated Power:0.37 kW
  • Voltage:230V AC, 1 Phase
  • Current:2.3 A
  • Frequency:50 Hz
  • Degree of Protection:IP 44
  • Insulation Class:F
  • Frame Size:71
  • Service Factor (SF):1.15
SAER KF0 V230 0.5HP 1PH 50HZ +TE With Pressure Control KIT
Product Description

The SAER KF0 V230 0.5HP 1PH 50HZ +TE is a compact, single-stage peripheral impeller pump designed for efficient fluid transfer in various applications. Built with durable materials and featuring a reliable mechanical seal, it is suitable for handling water and other compatible fluids at moderate temperatures and pressures. Its compact design and robust motor make it ideal for industrial, commercial, or residential fluid-moving tasks.

Key Features

  • Peripheral Impeller Design: Ensures stable performance and efficient fluid handling at low flow rates.

  • Robust Construction: Key components made from corrosion-resistant materials including stainless steel, brass, and cast iron.

  • Reliable Mechanical Seal: BXPG type (Graphite/Ceramic/NBR) for long-lasting, leak-free operation.

  • Compact and Lightweight: Easy to install and integrate into existing systems.

  • Single-Phase Motor: Operates on standard 230V supply, suitable for a wide range of environments.

  • Compliant with Standards: Manufactured in accordance with UNI EN ISO 9906:2012 grade 3B.

Typical Applications

  • Domestic water supply systems

  • Pressure boosting

  • Liquid transfer in light industrial processes

  • Irrigation and garden water systems

  • Cooling water circulation

Compliance & Certification

  • Standard: UNI EN ISO 9906:2012 Grade 3B

  • Insulation Class: F

  • Protection Rating: IP 44

Performance Curves (Key Points)

Flow (US gpm) Head (m) Shaft Power (kW) Efficiency (%)
0 39.6 0.16 0
4 38.0 0.20 ~20
8 34.0 0.24 ~29
