SAMSUN ULTRA 2000VA/24V MPPT HYBRID INVERTER
Choose options
- Capacity:2000VA/24V
- Output Waveform:Pure Sine Wave (≤5% THD)
- Battery Voltage:24V (supports 2x 12V batteries, 100-220Ah)
- Battery Types:Lead-Acid (LA/Tubular/SMF)
- Solar Charger:MPPT (Max 85V PV input, 50A charge current)
- Max Solar Array:1500W
- Grid Charging Current:25A ±2A
- Mains Voltage Range UPS Mode: 170-265VAC
- Protections:Short circuit, overload, over-temperature, reverse battery/PV, backfeed
- Battery Cutoffs:Low warning: 22V ±0.2V; Cutoff: 21.6V ±0.2V
- HV/IR Safety Tests:Leakage current <5mA @1.5kV, insulation >5MΩ @500VDC
- 30% faster charging with MPPT vs. PWM.
- Dual UPS modes adapt to unstable grids.
- Deep discharge recovery extends battery life
- Future-proof with scalable solar input (up to 1500W).
Samsun MPPT PCU 2000/24V

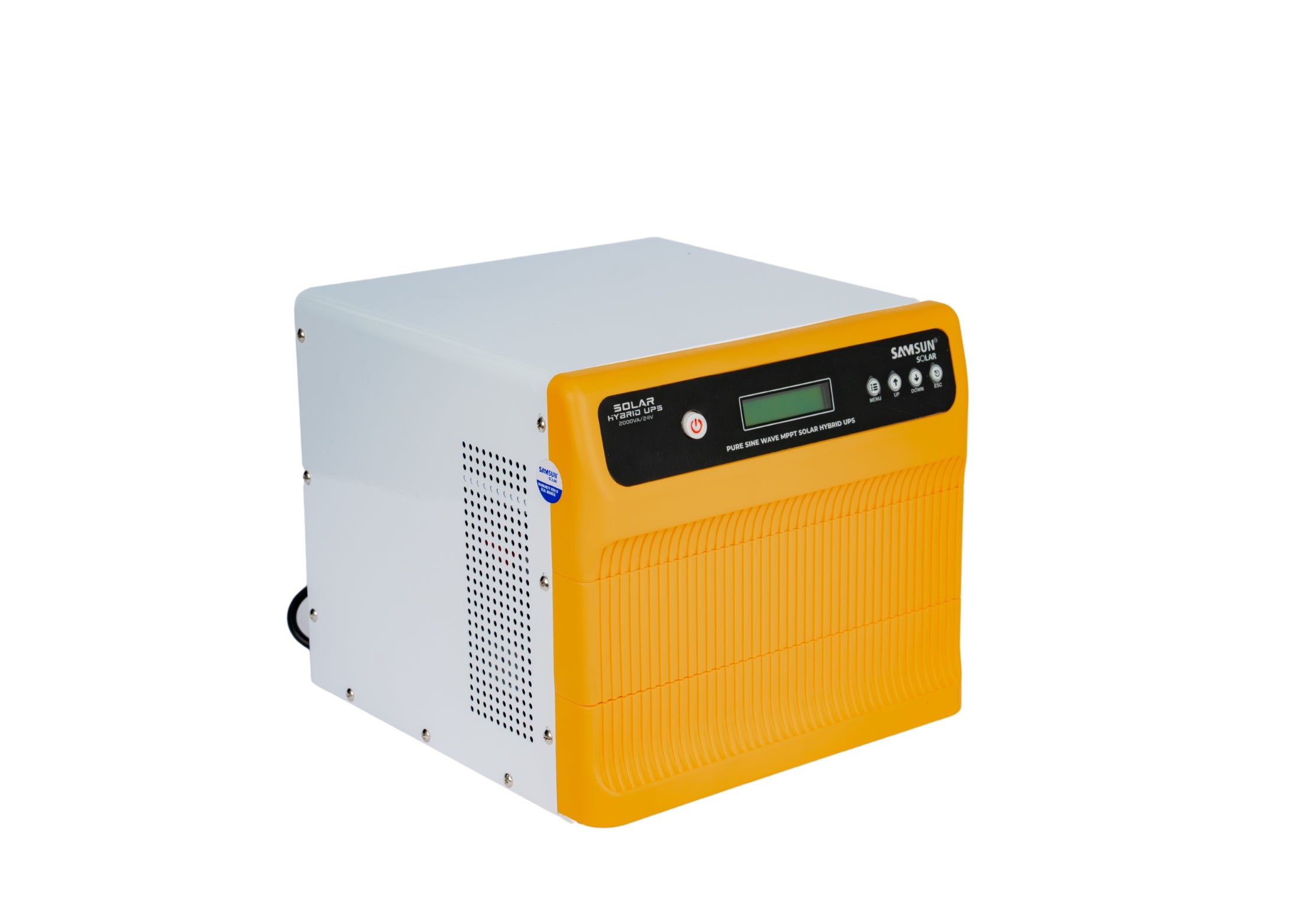

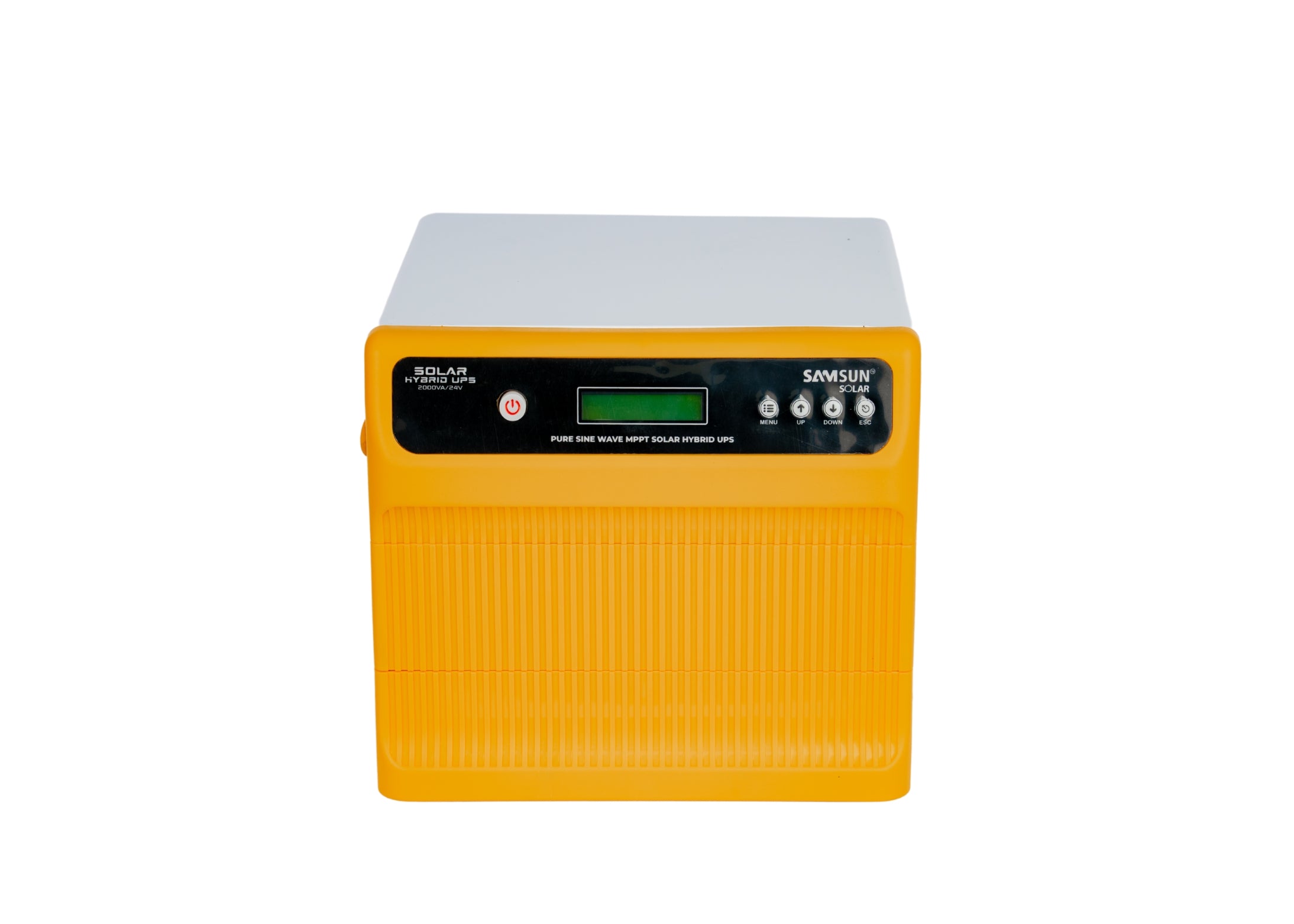

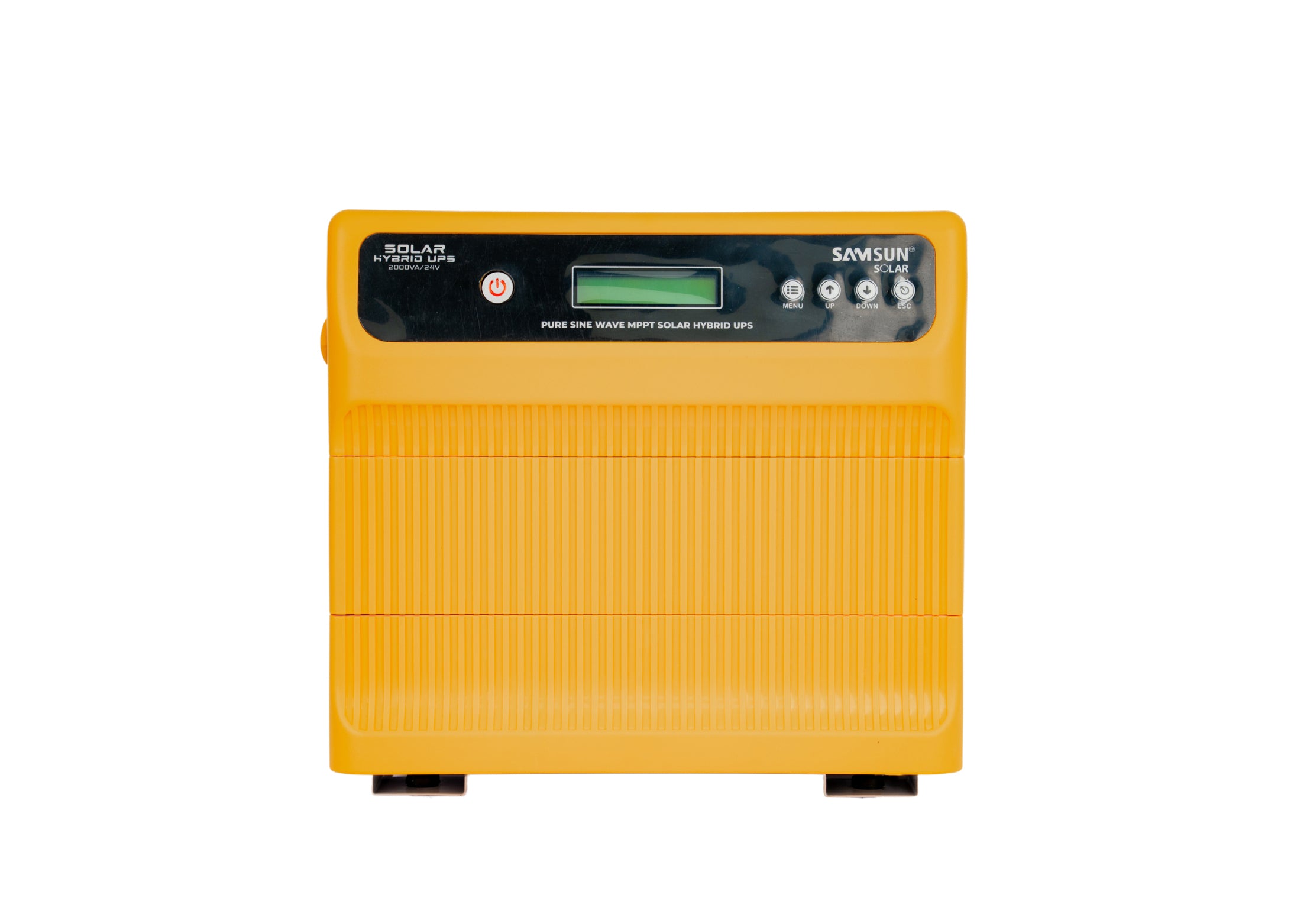

The Samsun MPPT PCU 2000/24V is an advanced solar hybrid power conditioning unit (PCU) designed for off-grid and hybrid solar systems. It integrates MPPT solar charging, grid charging, and inverter functionality to provide reliable backup power during outages while optimizing solar energy use. With a 2000VA/24V capacity, it supports lead-acid batteries (LA/Tubular/SMF) and features pure sine wave output for safe operation with sensitive electronics.
This PCU is ideal for homes, small businesses, and remote installations seeking energy independence with grid + solar + battery backup support. Its DSP-controlled MPPT technology ensures 30% faster charging compared to conventional PWM controllers, while the LCD display provides real-time system monitoring.
Key Features
Hybrid Solar + Grid Charging – Charges batteries from both solar (MPPT) and grid (25A max).
Pure Sine Wave Output – Clean power (<5% THD) for sensitive devices.
Advanced MPPT Technology – 93% efficiency with up to 85V PV input (1500W max).
Dual UPS Modes –
-
UPS Mode: Fast switchover (<10ms) for critical loads.
-
WUPS Mode: Wider voltage range (90-295VAC) for unstable grids.
Battery Protection – Deep discharge recovery, adjustable DOD (20%-50%), and voltage cutoffs.
Smart LCD Display – Shows real-time metrics (voltage, current, faults) and system status.
Robust Safety – Protections against short circuits, overloads, overheating, and reverse polarity.
Durable Design – MOSFET-based with temperature-controlled fan cooling.
