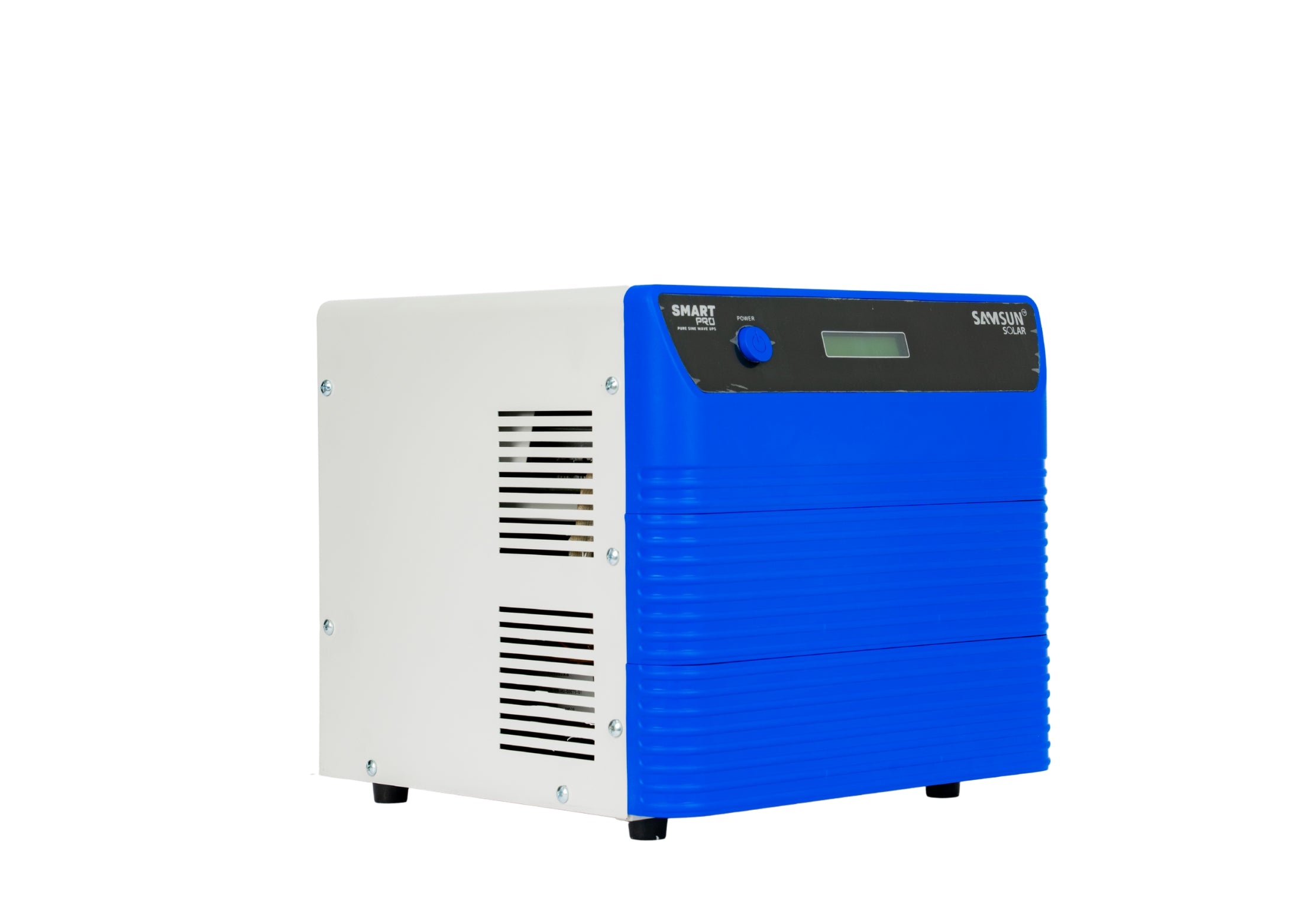

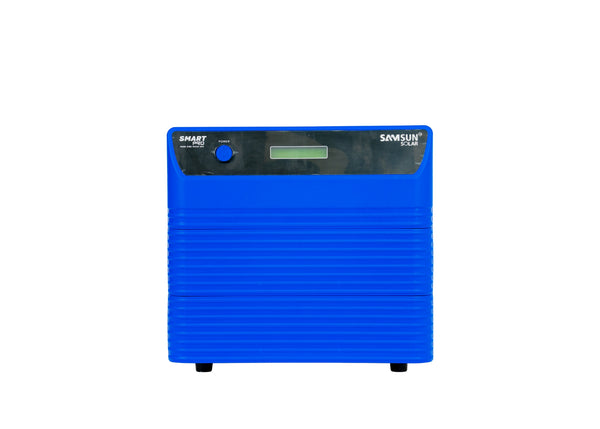

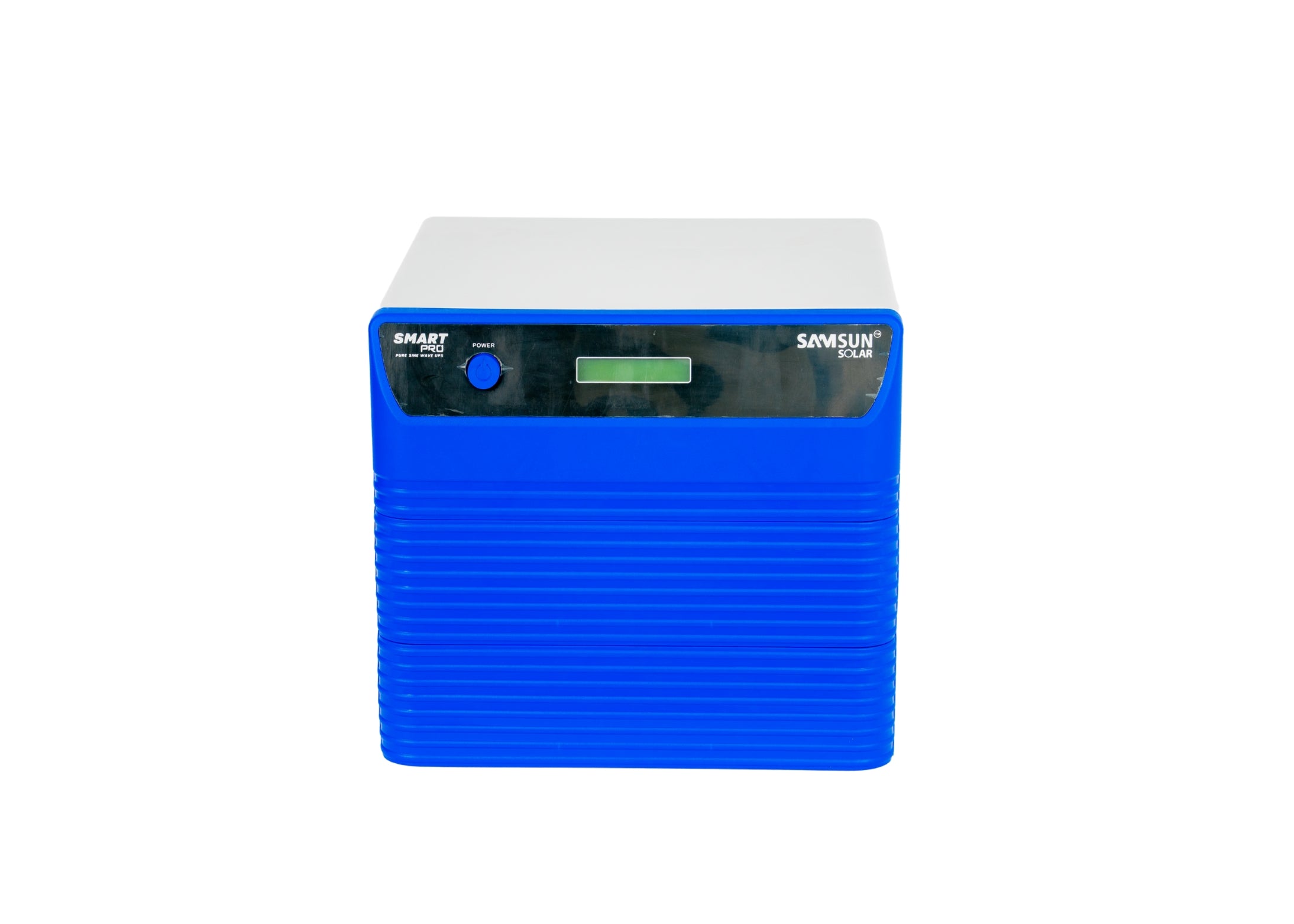

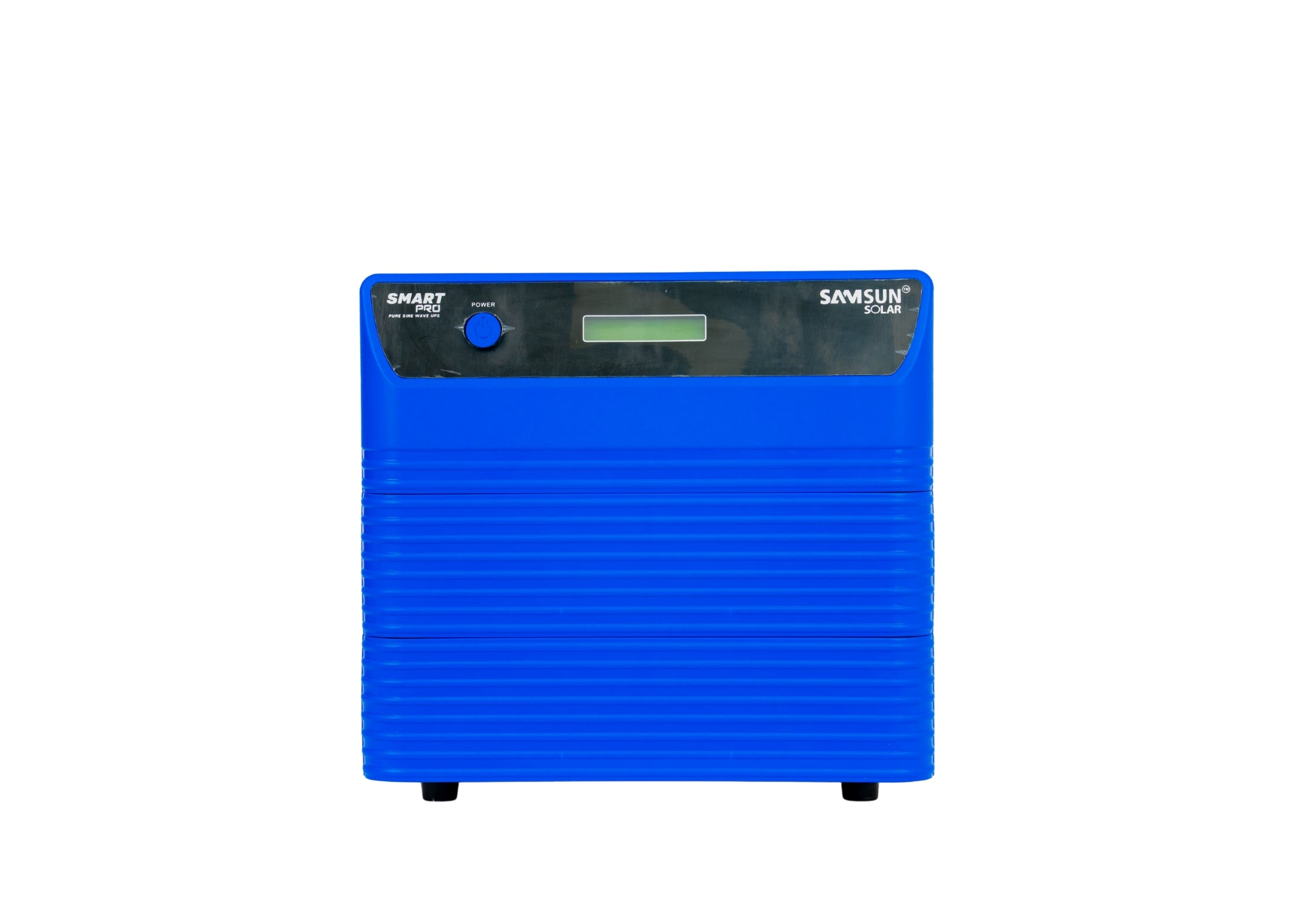

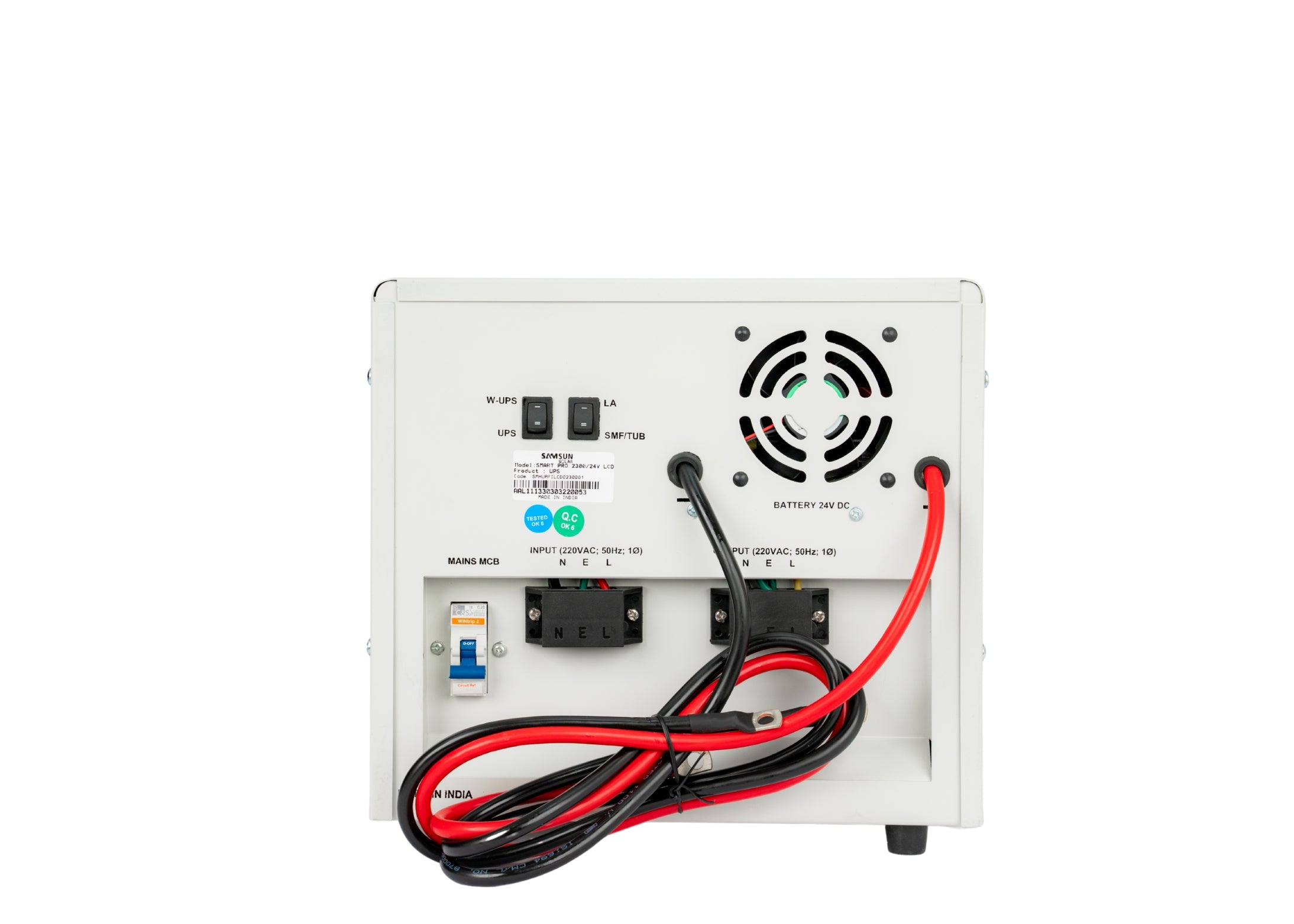

SAMSUN SMART PRO 2300VA/24V
SAMSUN SMART PRO 2300VA/24V
SAMSUN SMART PRO 2300VA/24V
SAMSUN SMART PRO 2300VA/24V

SAMSUN SMART PRO 2300VA/24V

AED 0.00

Shipping calculated at checkout

Power Capacity  : 2300va/24v
Product Weight  : 26.0 Kgs
Colour Name  : White/Blue
Dimension in mm  : 350 x 2300 x 310
Number of pieces  : 1BOX
Origin  : Made in INDIA
Product Overview
Highlights
  • Model Name:Smart Pro 2300VA
  • Battery Voltage:24V DC (2 x 12V batteries, 100Ah - 220Ah recommended)
  • Output Waveform:Pure Sine Wave (≤5% Total Harmonic Distortion)
  • Output Voltage:220V AC +5% -10%
  • Output Frequency:50Hz ± 0.2 Hz
  • Changeover Time:< 10ms (UPS Mode) / < 25ms (WUPS Mode)
  • No Load Consumption:≤4% of rated capacity
  • Charging Current:Adjustable from 15A to 25A (for 100Ah-220Ah batteries)
  • Bulk Charge Voltage:29.6V ±0.2V
  • Float Charge Voltage:27.4V ±0.2V
  • Battery Type Settings:Selectable for LA, Tubular, and SMF batteries
  • Low Battery Cut-off\t:20.8V ±0.2V
  • Low Battery Warning:21.8V ±0.2V
  • Over Temperature Shutdown:Yes (at 100°C Heat Sink Temperature)
  • Protections Included:Overload, Short Circuit, Back Feed, Reverse Polarity
SAMSUN SMART PRO 2300VA/24V
Product Description

The Samsun Smart Pro series is an advanced pure sine wave UPS designed for users who require reliable and intelligent power backup. A standout feature is its Independent Deep Discharge Battery Recovery Charger, which can rejuvenate deeply drained batteries that other inverters would reject, potentially saving significant replacement costs. With a high 15A-25A charging current, it ensures your batteries are charged faster, reducing generator runtime and maximizing solar charging efficiency. It offers complete protection, including against back feed from generators, and provides a user-friendly interface for monitoring system status.

Key Features

  • Deep Discharge Battery Recovery: Unique independent charger function can recover batteries that have been discharged below normal operating voltages.

  • High-Speed Charging: Features a powerful 15A to 25A settable charging current for significantly faster battery recharge times.

  • Pure Sine Wave Output: Delivers clean and stable AC power (≤5% THD), safe for all sensitive electronics like computers, AC units, and medical equipment.

  • Dual Mode Operation:

    • UPS Mode: Tight voltage window (175V-265V) for superior protection of connected equipment.

    • WUPS (Wide UPS) Mode: Expanded voltage range (90V-285V) for maximum backup availability in areas with very poor grid power.

  • Complete Protection Suite: Safeguards against Overload, Short Circuit, Over Temperature, Back Feed, and Reverse Polarity.

  • Advanced Battery Management: User-selectable charging voltages optimized for different battery types (LA, Tubular, SMF) to maximize battery life.

  • Comprehensive Display & Alarms: LED status indicators and an audible buzzer provide clear warnings for all critical events (e.g., low battery, overload, mains fault).
