SAMSUN SMART PRO 3500VA/24V LCD
SAMSUN SMART PRO 3500VA/24V LCD
SAMSUN SMART PRO 3500VA/24V LCD
SAMSUN SMART PRO 3500VA/24V LCD

SAMSUN SMART PRO 3500VA/24V LCD

AED 0.00

Shipping calculated at checkout

Product Weight  : 26.3 Kgs
Colour Name  : White/Blue
Dimension in mm  : 530 x 360 x 585
Power Capacity  : 3500va/24V
Number of pieces  : 1BOX
Origin  : Made in India
Product Overview
Highlights
  • Model:Smart Pro Series
  • Rated Capacity:3500 VA
  • DC Input Voltage:24V DC
  • Battery Configuration:2 x 12V batteries (100Ah to 220Ah)
  • Input Voltage Range (UPS Mode):175V - 265V ± 10V
  • Input Voltage Range (WUPS Mode):90V - 285V ± 10V
  • Input Frequency Range:40Hz - 60Hz
  • Output in Mains Mode:Same as Input (Voltage & Frequency)
  • Bulk Absorption Voltage:59.2V ± 0.4V
  • Float Charging Voltage:54.8V ± 0.4V
  • Boost Voltage (LA Battery):56.0V ± 0.4V
  • Boost Voltage (Tubular/SMF):58.0V ± 0.4V
  • Charging Current (100Ah-220Ah):20A - 25A
  • Deep Discharge Recovery:Yes (Independent Charger)
  • Output Voltage:220VAC +5% -10%
  • Output Frequency:50Hz ± 0.2 Hz
  • Output Waveform:Pure Sine Wave (≤ 5% THD)
  • Full Load Discharging Current:60A ± 2A
  • No-Load Current:≤ 4% of rated capacity
  • Changeover Time (UPS Mode):< 4 ms
  • Changeover Time (WUPS Mode):< 25 ms
  • Low Battery Warning:21.2V ± 0.4V
  • Low Battery Cut-off:20.8V ± 0.4V
  • Overload Protection:Yes (Indication at 101% load)
  • Short Circuit (Backup):System shutdown after 3 retries
  • Short Circuit (Mains):Mains MCB Trip
  • Back Feed Protection:System Shutdown (No retry)
  • Over Temperature:Shutdown at >100°C Heat Sink Temp
  • Reverse Battery Polarity:Battery MCB Trip
  • Display:Comprehensive LED Status Display
  • Alarms:Audible Buzzer for all fault conditions
SAMSUN SMART PRO 3500VA/24V LCD
Product Description

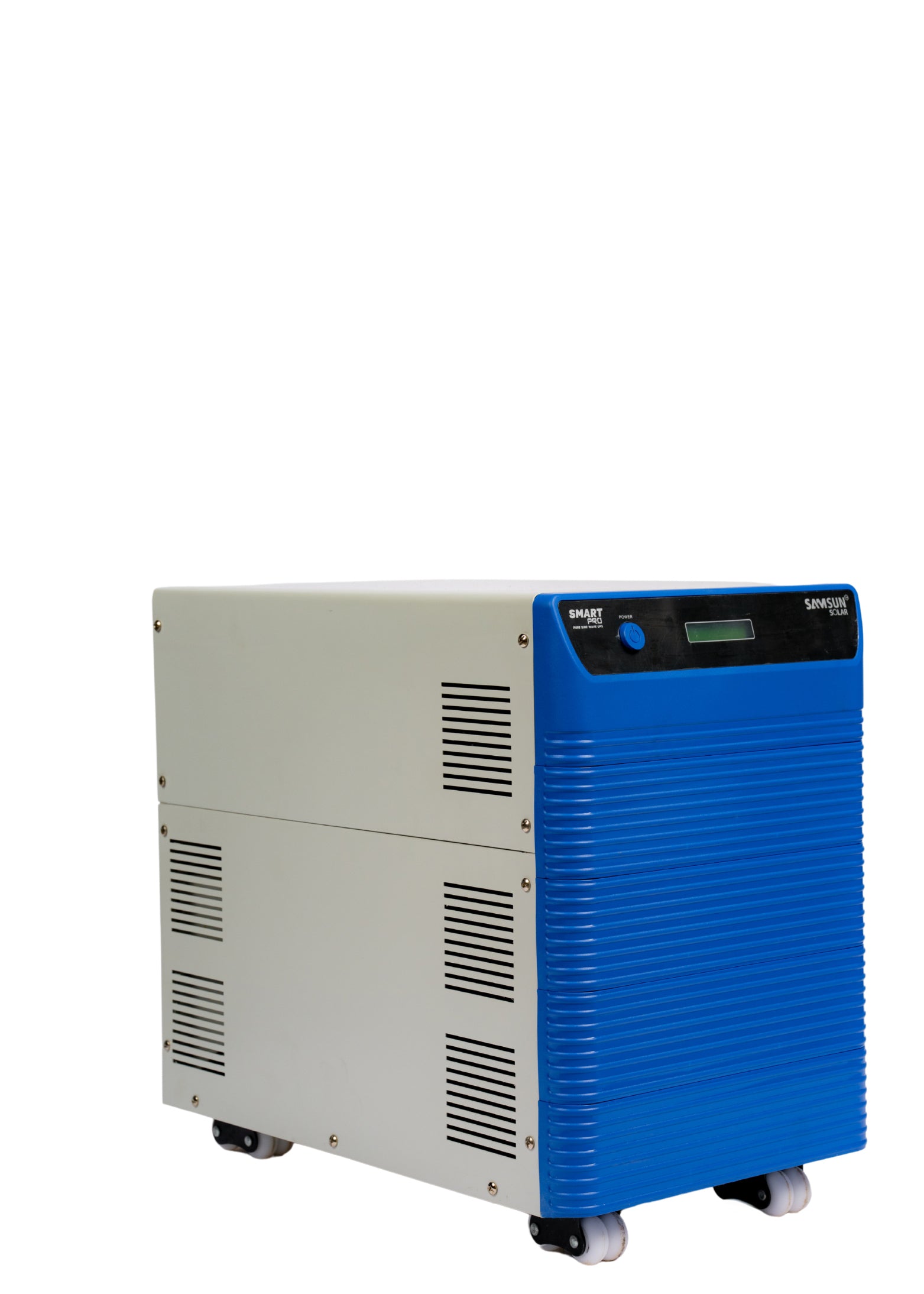

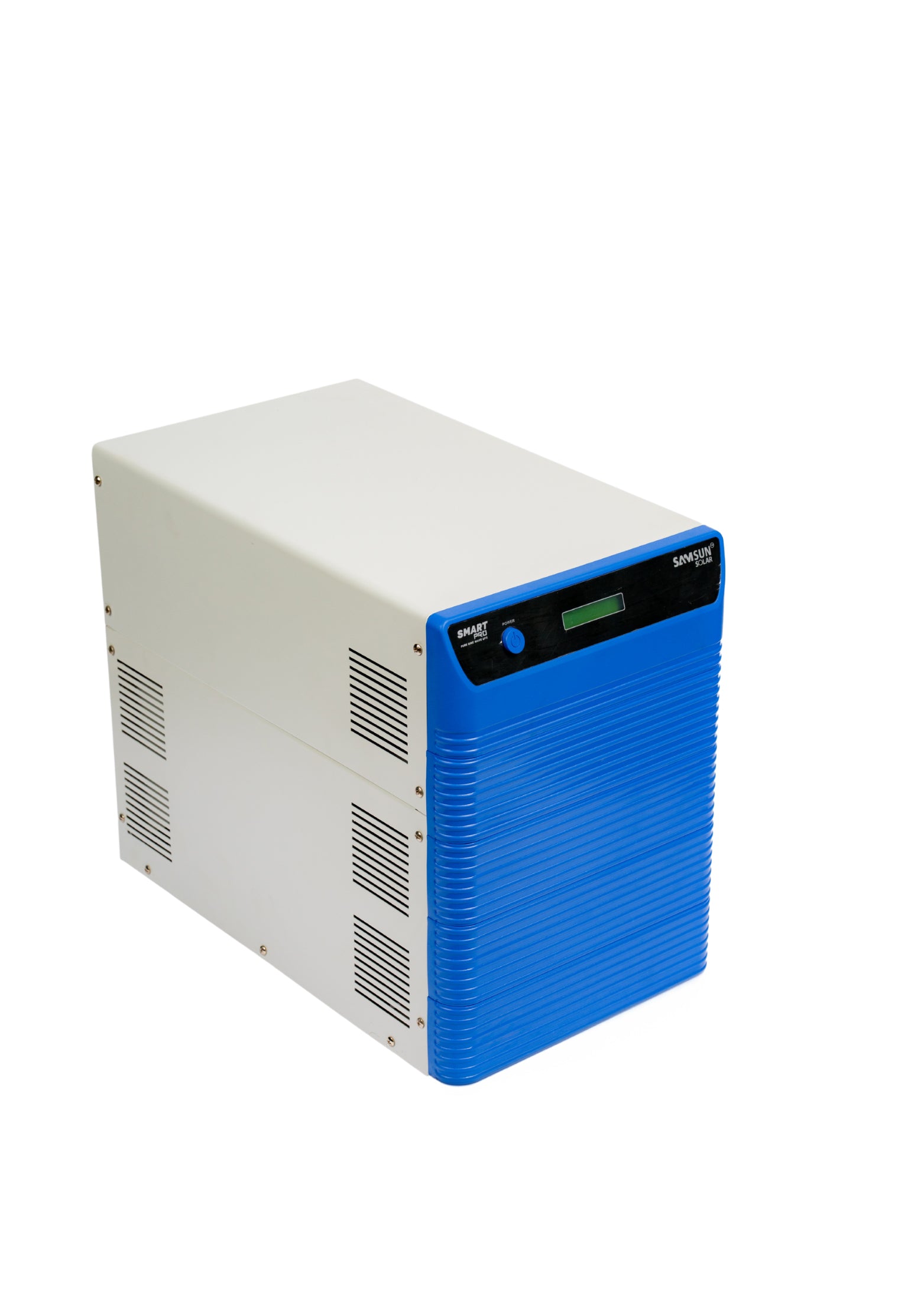

The Samsun Smart Pro 3500/24V is a high-performance Pure Sine Wave Home UPS designed to deliver reliable and clean backup power for medium-sized homes and offices. Part of the "Smart Pro" series, it ensures you "Never Feel Powerless" by providing seamless protection for a wide range of appliances, from refrigerators and televisions to computers and fans. Its hallmark feature is an Independent Charger for Deep Discharge Battery Recovery, capable of reviving batteries that have been completely drained, thereby extending their service life. With a robust 25A charging current, dual operating modes for varying grid conditions, and a comprehensive suite of protections, the 3.5kVA/24V system offers an optimal blend of power, intelligence, and durability.

Key Features & Benefits

  1. Pure Sine Wave Output:

    • Produces a clean and stable sine wave identical to or better than grid power, ensuring the safe and efficient operation of sensitive electronics like computers, LED TVs, and medical equipment without any risk of damage or operational issues.

  2. Deep Discharge Battery Recovery:

    • Equipped with a specialized independent charger that can recover deeply discharged batteries, a common cause of battery failure. This feature extends battery lifespan and provides significant cost savings.

  3. High-Efficiency 25A Charging:

    • A powerful 25A charger ensures rapid battery replenishment, which is crucial for larger battery banks (up to 220Ah). This minimizes grid consumption and ensures the backup system is ready quickly after use.

  4. Dual-Mode Operation (UPS & WUPS):

    • Offers flexibility with a UPS mode for standard grid conditions (175V-265V) with an ultra-fast <4ms switchover, and a WUPS mode for areas with extreme voltage fluctuations (90V-285V), ensuring uninterrupted power in any environment.

  5. Comprehensive Protection Suite:

    • Incorporates multiple safety mechanisms including protection against back feed, phase-to-phase faults, overload, short circuit (with auto-retry), over-temperature, and reverse battery connection, safeguarding both the inverter and connected appliances.

  6. User-Friendly Interface with Detailed Display:

    • Features a comprehensive LED status display that provides real-time information on input/output voltage, frequency, battery level, load percentage, and system status, making monitoring and troubleshooting simple.

  7. Optimized for Medium Power Needs:

    • The 3.5kVA/24V configuration is ideal for powering essential household loads during outages, supporting a wide range of batteries from 100Ah to 220Ah for customizable backup time.

  8. Robust Build and Low Standby Consumption:

    • Engineered for reliability with a high-quality heatsink and efficient power management, resulting in low no-load power consumption (≤4%), which saves on electricity costs when the inverter is on standby.
