SUMAK SMF BATTERY 5AH/12V
Choose options
- Model:SMPB 12V 5Ah
- Nominal Voltage:12 Volts
- Nominal Capacity (20Hr Rate):5.0 Ah (0.25A discharge to 10.50V)
- Weight:Approx. 1.62 kg (3.56 lbs)
- Internal Impedance:Approx. 34 mΩ
- Terminal Type:F1 (Faston 187) or F2 (Faston 250)
- Max. Charging Current:1.5A
- Charge:-15°C (5°F) to 40°C (104°F)
- Discharge:-15°C (5°F) to 50°C (122°F)
- Storage:-15°C (5°F) to 40°C (104°F)

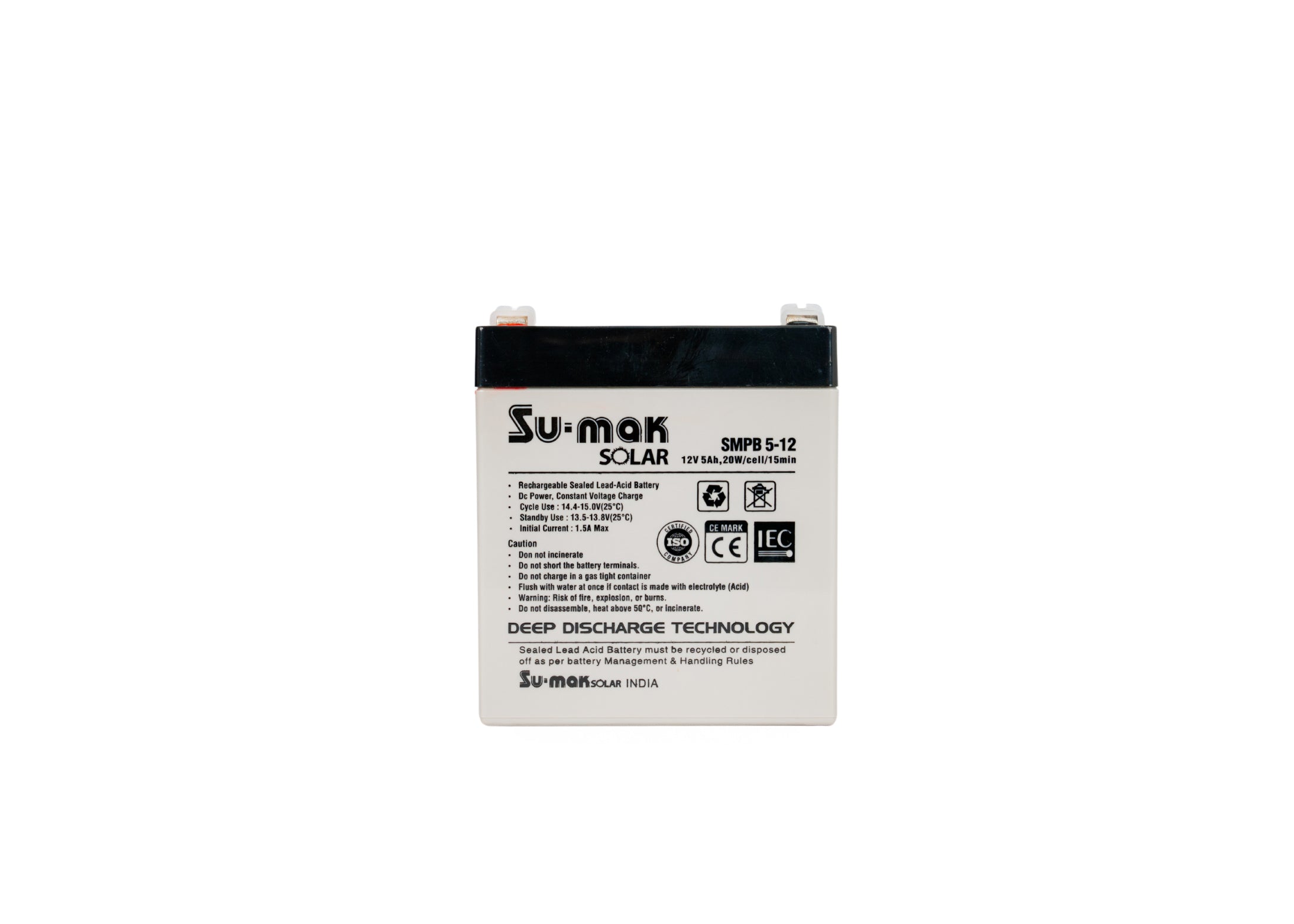

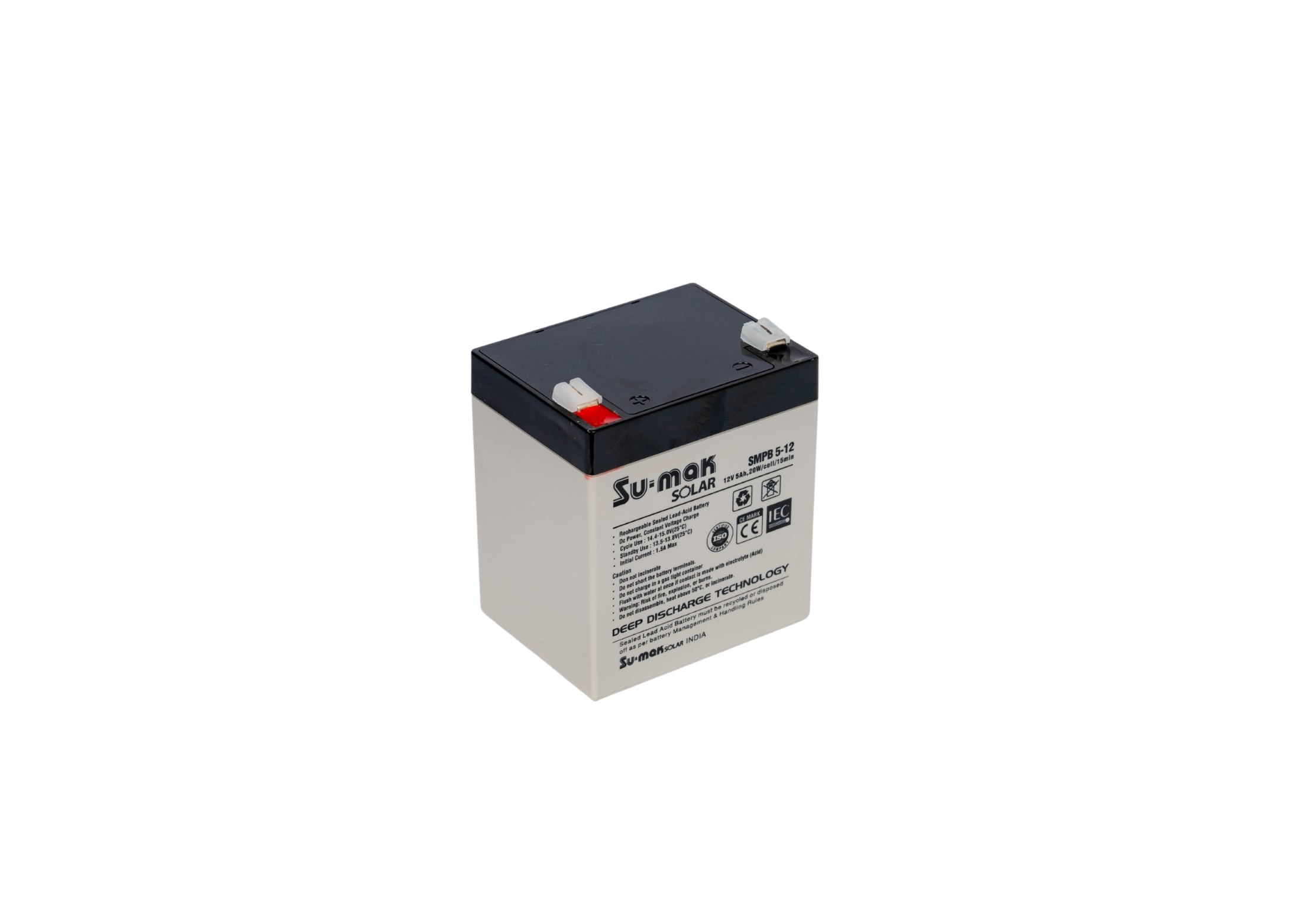

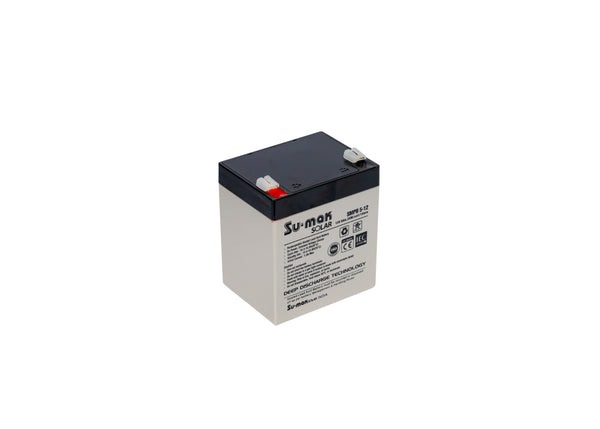

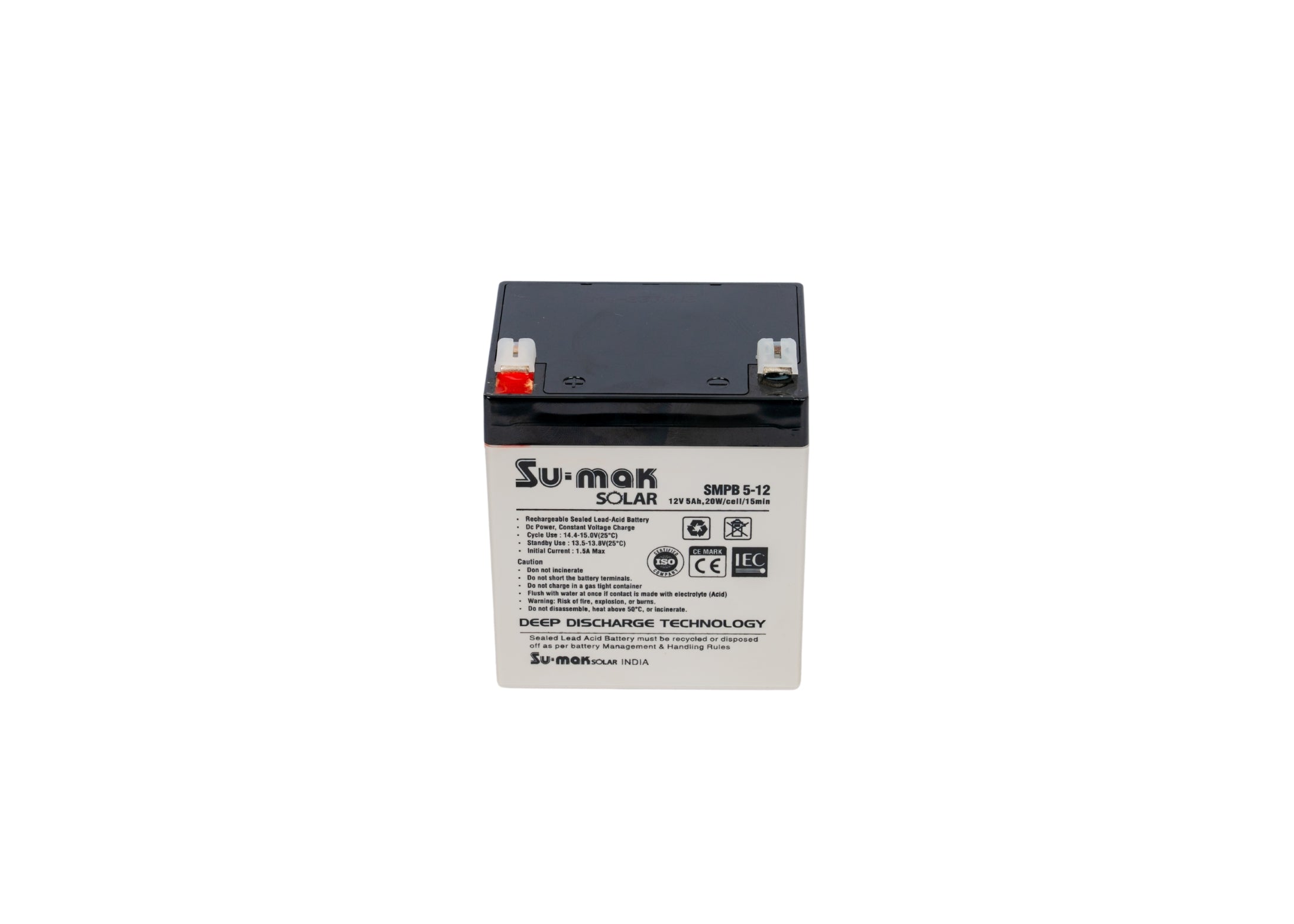

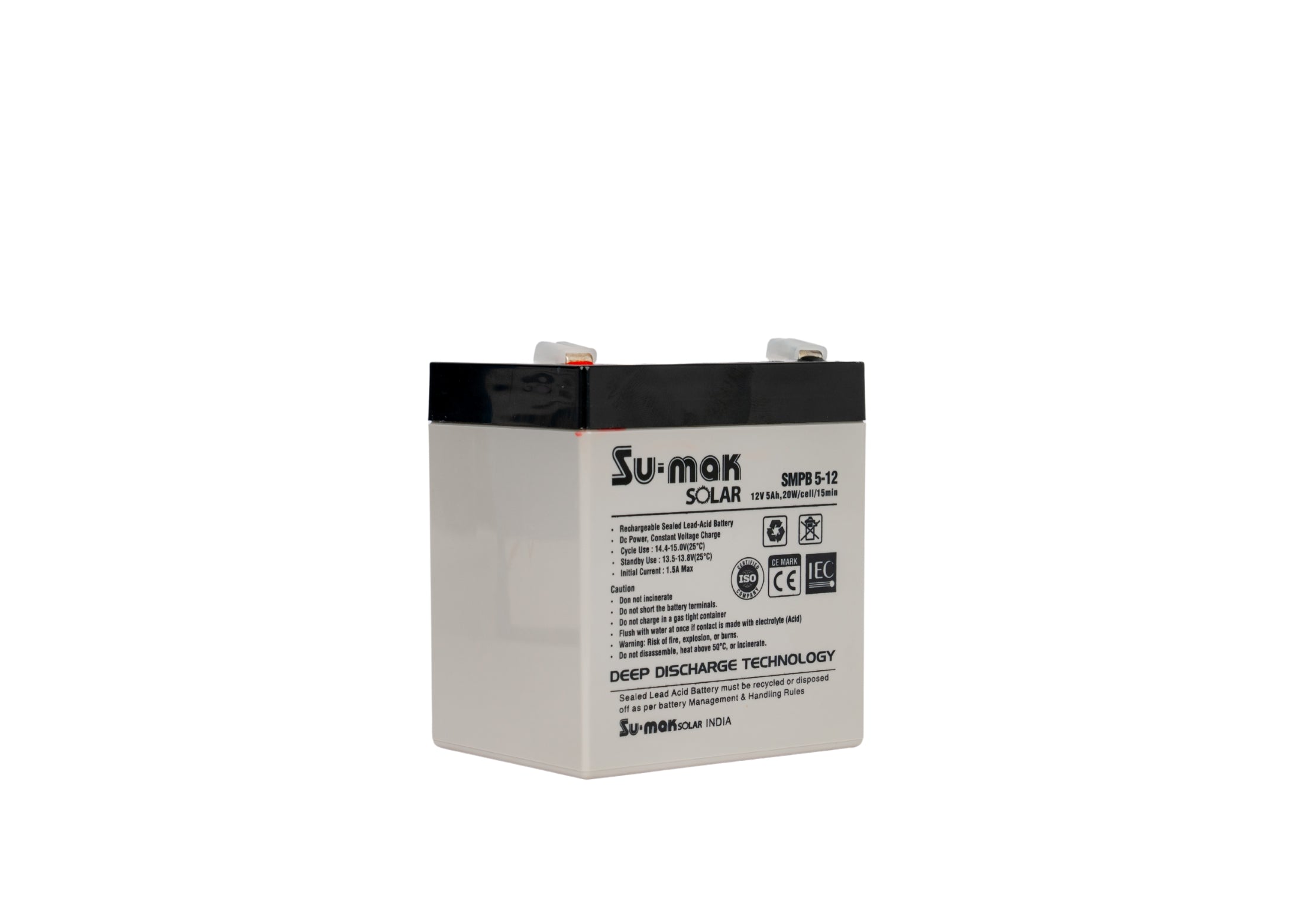

The SMPB 12V 5Ah is a rechargeable, maintenance-free Sealed Lead Acid (SLA) battery designed for reliability and long service life. Built with a robust ABS case, this battery is leak-proof and can be mounted in various orientations, making it highly versatile. It is engineered to deliver consistent power for a wide range of applications, from emergency lighting and security systems to small UPS backups and portable devices. Its high discharge rate capability makes it suitable for applications requiring a burst of power.
Key Features
-
Maintenance-Free Operation: Sealed design eliminates the need for water topping, ensuring hassle-free use.
-
Spill-Proof and Safe: The Absorbent Glass Mat (AGM) technology allows for safe operation without risk of acid leakage.
-
High Discharge Current: Capable of delivering very high currents for short durations (e.g., 75A for 5 seconds), ideal for powering motors or high-wattage equipment briefly.
-
Long Charge Retention: Excellent shelf life, retaining 90% of its charge after 3 months at 20°C, reducing the need for frequent topping charges.
-
Versatile Mounting: The sturdy ABS plastic case allows for installation in any orientation except inverted.
-
Standard Connectors: Equipped with Faston tab terminals (F1: 6.35mm / 0.25" or F2: 9.5mm / 0.375") for easy and secure connections.
-
Wide Operating Temperature Range: Reliable performance in various environments, capable of discharging in temperatures up to 50°C (122°F).
